LEDMATRIX18
PROLIGHTS
discontinued

LEDMATRIX18

ORDER CODE: LEDMATRIX18

Main features:

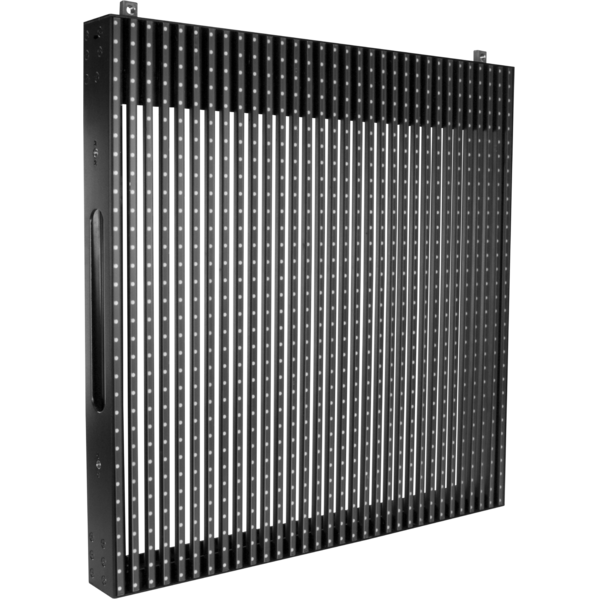

    LEDMATRIX18 is a LED module to create ledscreens with 18,75 mm pixel pitch, ideal for video screening, pictures and backgrounds for medium viewing distances from ledwall surface.
    The architecture of LEDMATRIX18 is conceived with 600x600 mm module size, featuring 1024 SMD FullColor LEDs for an impressive light output (up to 3000NIT).
    The instantaneous colour calibration system, through the control unit, features rich and vibrant video images with superb colour depth and uniformity, providing vivid and natural true colours.
    IP65 protection rate on front side, makes LEDMATRIX18 suitable for both indoor and outdoor projects.
    With a transparency factor of 40%, LEDMATRIX18 allows the light to go through the screen surface, opening up a wide range of creative design possibilities, combining video screening with backlights through washlight and beam projectors, even for 3D projections.
    The main structure is designed in aluminium, making LEDMATRIX18 extremely lightweight (only 18,05 kg/m2), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.

    Applications
    • In arenas or sport stadiums with large audiences
    • In concerts and live events, where heavy large-size screen would overload the supporting structure
    • Wide-canvas dynamic backdrops for theatres and TV studios combined with lighting effects
    • Large trade-show booths with creative video imaging
    • In theme parks or public events

    Mechanical architecture
    • Module dimensions (WxHxD): 600x600x60 mm
    • Module weight: 6.500 g
    • Weight per square meter: 18,05 kg
    • LED housing bar in aluminium
    • Transparency rate: 40%
    • Main structure in steel
    • Mechanical finishing: black
    • Cooling: natural airflow
    • Working position: every orientation
    • Vertical hanging system: built-in aliscaf clamp support

    Electrical features
    • Power supply: AC 110/230V 50/60Hz
    • Power IN connections: Neutrik Powercon
    • Max power consumption (module): 200W
    • Average power consumption (module): 100W
    • Max power consumption (per square meter): 555W
    • Power output: Max 10 moduli
    • MTBF: > 1.000 h
    • Working temperature: -10° / 50°
    • Max ambience humidity: 10% - 90%

    Video features
    • LED source: high-power SMD FullColor
    • Module resolution: 32x32 pixel, 1024 total pixel
    • Pixel pitch: 18,75mm
    • LED density: 2.844 LED/sqm
    • Luminous flux: 3.000 cd/sqm (NIT)
    • LED life span: >50.000h
    • Colours: >68,7 billions through RGB mixing
    • Grayscale: 12bit
    • Refresh rate: >400Hz
    • Colour calibration through PC software
    • Maximum video IN signal resolution: 1024x768 pixel
    • Viewing angle: 140° horizontal, 140° vertical
    • Dead pixel ratio: <0,002

    Control system
    • Dedicated interface (Sender box) for video signal distribution and screen configuration
    • Data IN sender box: USB connector
    • Data IN module: RJ45 connectors
    • Connection between screen and sender box: USB cable
    • Connection between sender box and video wall: CAT5 data cable + Ethercon Neutrik connectors
