LEDMATRIX25

ORDER CODE: LEDMATRIX25

Main features:

---

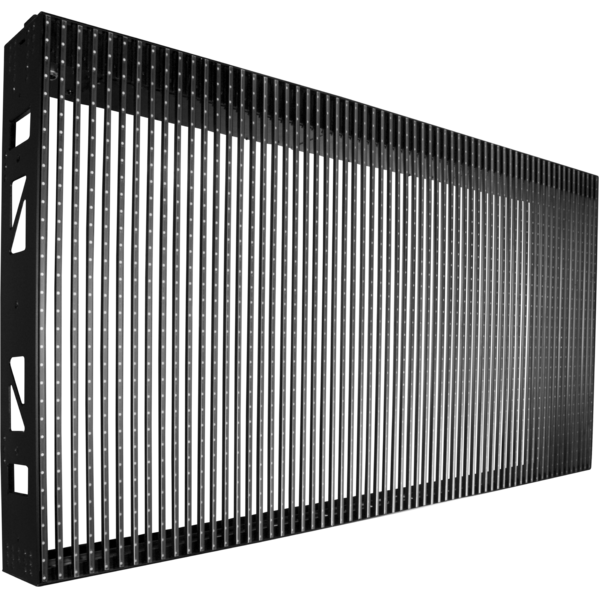

LEDMATRIX25 is a LED module to create led screens with 25 mm pixel pitch, ideal for video screening, pictures and backgrounds for medium/long viewing distances from ledwall surface.

The architecture of LEDMATRIX25 is conceived with 1600x80 0mm module size, featuring 2048 SMD FullColor LEDs for an impressive light output (up to 2000NIT).

The instantaneous colour calibration system, through the control unit, features rich and vibrant video images with superb colour depth and uniformity, providing vivid and natural true colours.

IP65 protection rate on front side, makes LEDMATRIX25 suitable for both indoor and outdoor projects.

With a transparency factor of 50%, LEDMATRIX25 allows the light to go through the screen surface, opening up a wide range of creative design possibilities, combining video screening with backlights through washlight and beam projectors, even for 3D projections.

The main structure is designed in aluminium, making LEDMATRIX25 extremely lightweight (only 16,6 kg/m2), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.

Applications

• In arenas or sport stadium with large audiences
• In concerts and live events, where heavy large-size screen would overload the supporting structure
• Large and long-viewing advertising banners
• Wide-canvas dynamic backdrops for theatres and TV studios combined with lighting effects
• Large tradeshow booths with creative video imaging

Mechanical architecture

• Module dimensions (WxHxD): 1600x800x140 mm
• Module weight: 21.500 g
• Weight per square meter: 16,6 kg
• LED housing bar in aluminium
• Transparency rate: 50%
• Main structure in steel
• Mechanical finishing: black
• Cooling: natural airflow
• Working position: every orientation
• Vertical hanging system: built-in aliscaf clamp support

Electrical features

• Power supply: AC 110/230V 50/60Hz
• Power IN connections: Neutrik Powercon
• Max power consumption (module): 700W
• Average power consumption (module): 500W
• Max power consumption (per square meter): 546W
• Power output: Max 4 moduli
• MTBF: > 1.000 h
• Working temperature: -10° / 50°
• Max ambience humidity: 10% - 90%

Video features

• LED source: high-power SMD FullColor
• Module resolution: 64x32 pixel, 2048 total pixel
• Pixel pitch: 25 mm
• LED density: 1.600 LED/sqm
• Luminous flux: 3.040 cd/sqm (NIT)
• LED life span: >50.000 h
• Colours: >68,7 billions through RGB mixing
• Grayscale: 12bit
• Refresh rate: >400Hz
• Colour calibration through PC software
• Maximum video IN signal resolution: 1024x768 pixel
• Viewing angle: 140° horizontal, 140° vertical
• Dead pixel ratio: <0,002

Control system

• Dedicated interface (Sender box) for video signal distribution and screen configuration
• Data IN sender box: USB connector
• Data IN module: RJ45 connectors
• Connection between screen and sender box: USB cable
• Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors
