LEDPAR641884IN1
PROLIGHTS
discontinued

LEDPAR641884IN1

ORDER CODE: LEDPAR641884IN1

Main features:

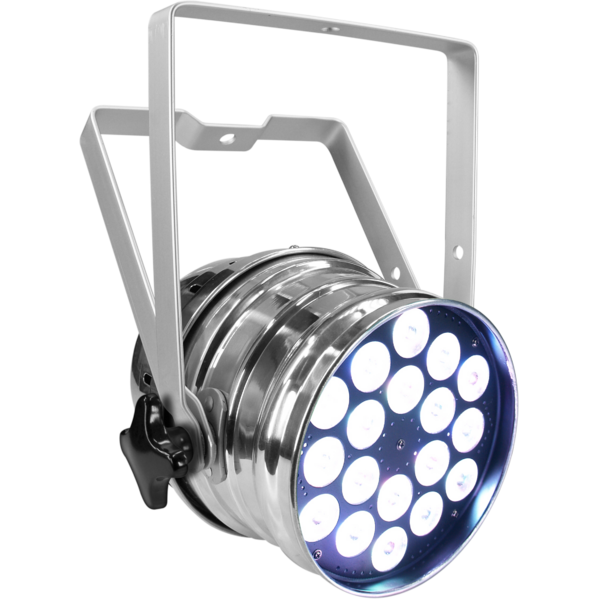

    PAR64 projector based on LED technology with 18 4-in-1 LEDs, 8W each. Colour synthesis has been designed with special optical units containing 4 x 2W LEDs inside each lens, providing a powerful light emission (8W each lens) and a limitless colour range. LEDPAR641884in1 is efficient even in short-distance projection due to the 4in1 applied technology, avoiding the troublesome chromatic separation effects and RGB shadows of traditional LED projectors.

    Light source and optics
    • High powerful 18 x 8W 4-in-1 LEDs (2W red, 2W green, 2W blue, 2W white in each lens), for more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: 4-in-1 Colour mixing (>4 billion colours)  for a limitless colour range
    • Projection angle: 40°
    • LEDs average life span: >50'000 hours.
    Electronics and features
    • User interface: LED (4 char) display
    • Several DMX selectable configurations (4, 5, 8 channels) for professional or simplified controlling
    4 channels: RGBW
    5 channels: Dimmer, RGBW
    8 channels: Dimmer, RGBW, strobe, auto, macros, ID address
    • Auto mode: 14 built-in programs with brightness adjustments, execution speed, strobe activation
    • Static colour mode: selection of static colour
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Sound mode: sound activation through built-in microphone with sensitivity adjustment
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)
    Structure and power supply
    • Sturdy die-cast aluminium body, IP33 protection rate
    • Cooling: forced air, protection against overheating
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz, 1,5m cable included
    • Consumption: 120W
    • Weight: 3kg
    • Dimensions (WxHxD): 310x230x230mm
