LIVE10
DAD
end of life

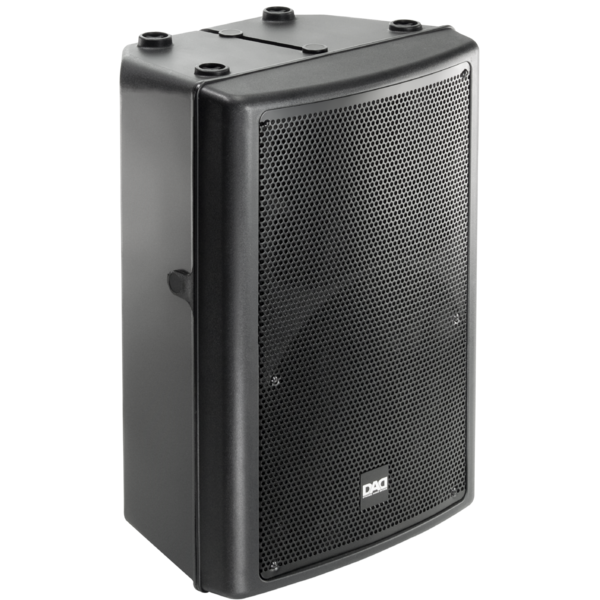

LIVE10

ORDER CODE: LIVE10

2-way passive loudspeaker, 250 W AES, 125dB SPL

Main features:

  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
  • Frequency response: 70-18000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Polypropylene enclosure, designed for stage-monitor application
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
See variants

PHOTO GALLERY

LIVE10
LIVE10
LIVE10
LIVE10
LIVE10

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
FEATURES
  • AES/program power: 250/500W
  • SPL max: 125dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 95dB @1W/1m (free field)
  • Impedance: 8
  • SPL cont/peak: 119/125dB @1m (free field)
  • Frequency response: 70-18000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 2200Hz
  • Protection: H.F. signal compression
  • Recommended amplifier up to: 500W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 60° monitor applications
  • Handles: 1 on side
PHYSICAL
  • Dimensions (WxHxD): 330x557x313mm / 12.99''x21.93''x12.32''
  • Weight: 15.8kg / 34.83lbs

Versions

Accessories & Related Products

BAGLIVE10
BAGLIVE10
(Optional)
Fabric protection for LIVE10/LIVE10A
AS255
AS255
(Optional)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
ACCA5462
ACCA5462
(Optional)
M8x25mm. Eye-bolt suitable for suspension of loudspeakers
