LIVE10A
DAD

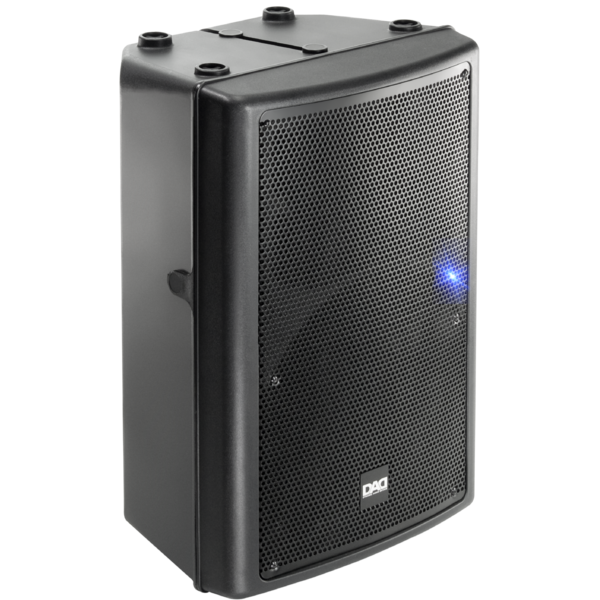

LIVE10A

ORDER CODE: LIVE10A

Active loudspeaker, AB-class bi-amp, 2-way 250 W+50 W, 122dB SPL

Main features:

  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
  • Frequency response: 65-18000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Polypropylene enclosure, designed for stage-monitor application
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
See variants

PHOTO GALLERY

LIVE10A
LIVE10A
LIVE10A
LIVE10A
LIVE10A

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
FEATURES
  • Built-in amp LF/HF: 250+50 /4/8Ohm
  • SPL max: 122dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 116/122dB @1m (free field)
  • Frequency response: 65-18000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 2500Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 250+50W /4/8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 60° monitor applications
  • Handles: 1 on side
PHYSICAL
  • Dimensions (WxHxD): 330x557x313mm / 12.99''x21.93''x12.32''
  • Weight: 20.5kg / 45.19lbs

Versions

Accessories & Related Products

BAGLIVE10
BAGLIVE10
(Optional)
Fabric protection for LIVE10/LIVE10A
AS255
AS255
(Optional)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
ACCA5462
ACCA5462
(Optional)
M8x25mm. Eye-bolt suitable for suspension of loudspeakers
