LIVE12SA
DAD
discontinued

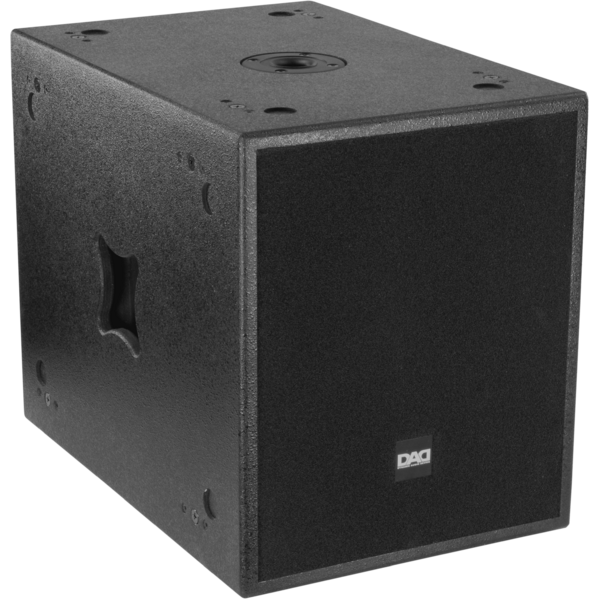

LIVE12SA

ORDER CODE: LIVE12SA

Bass-reflex active subwoofer, 600 W AB-class amplifier, 126dB SPL

Main features:

  • Low frequency: 12'' woofer/3''v.c.
  • Frequency response: 50-200 Hz (±3dB)
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Sound reinforcement in permanents installations or mobile sets
  • Birch plywood enclosure
See variants

PHOTO GALLERY

LIVE12SA
LIVE12SA
LIVE12SA
LIVE12SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 12'' woofer/3''v.c.
FEATURES
  • Built-in amp LF: 600W /8 Ohm
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 118/126dB @1m (free field)
  • Frequency response: 50-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Cross over frequency: LPF:80/165 Hz - HPF 22, 80,125 HzHz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 600W /8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: master, LPF, HPF, phase, limit
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm, pin RCA unbal.
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, 35 mm pole mount
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 480x400x590mm / 18.9''x15.75''x23.23''
  • Weight: 32kg / 70.55lbs

Versions

Accessories & Related Products

AS210
AS210
(Optional)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
