LIVE18S
DAD
discontinued

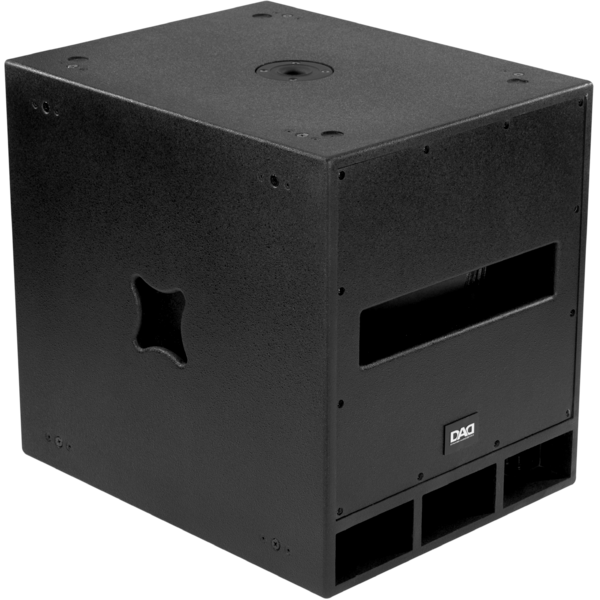

LIVE18S

ORDER CODE: LIVE18S

Double-reflex passive subwoofer, 500 W AES, 130dB SPL

Main features:

  • Low frequency: 18'' woofer /4''v.c.
  • Frequency response:45-200 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Sound reinforcement in permanents installations or mobile sets
  • Birch plywood enclosure
See variants

PHOTO GALLERY

LIVE18S
LIVE18S
LIVE18S
LIVE18S

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer dual reflex
COMPONENTS
  • Low frequency: 18'' woofer/4''v.c.
FEATURES
  • AES/program power: 500/1000W
  • SPL max: 130dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 96dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 124/130dB @1m (free field)
  • Frequency response: 45-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 80/165Hz
  • Recommended amplifier up to: 1000W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, 35 mm pole mount
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 535x645x620mm / 21.06''x25.39''x24.41''
  • Weight: 47kg / 103.62lbs

Versions

Accessories & Related Products

AS210
AS210
(optional)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
