LIVE18SA
DAD
discontinued

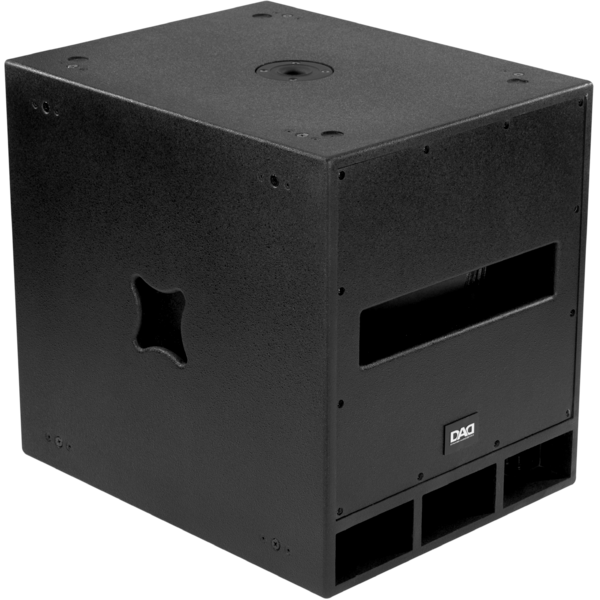

LIVE18SA

ORDER CODE: LIVE18SA

Double-reflex active subwoofer, 600 W AB-class amplifier, 130dB SPL

Main features:

  • Low frequency: 18'' woofer/4''v.c.
  • Frequency response: 40-200 Hz (±3dB)
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Sound reinforcement in permanents installations or mobile sets
  • Birch plywood enclosure
See variants

PHOTO GALLERY

LIVE18SA
LIVE18SA
LIVE18SA
LIVE18SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer dual reflex
COMPONENTS
  • Low frequency: 18'' woofer/4''v.c.
FEATURES
  • Built-in amp LF: 600W /8 Ohm
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 124/130dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Cross over frequency: LPF:80/165 Hz - HPF 22, 80,125 HzHz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 600W /8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: master, LPF, HPF, phase, limit
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm, pin RCA unbal.
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, 35 mm pole mount
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 536x645x680mm / 21.1''x25.39''x26.77''
  • Weight: 56kg / 123.46lbs

Versions

Accessories & Related Products

AS210
AS210
(Optional)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLive18sa_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
