LIVE8
DAD
end of life

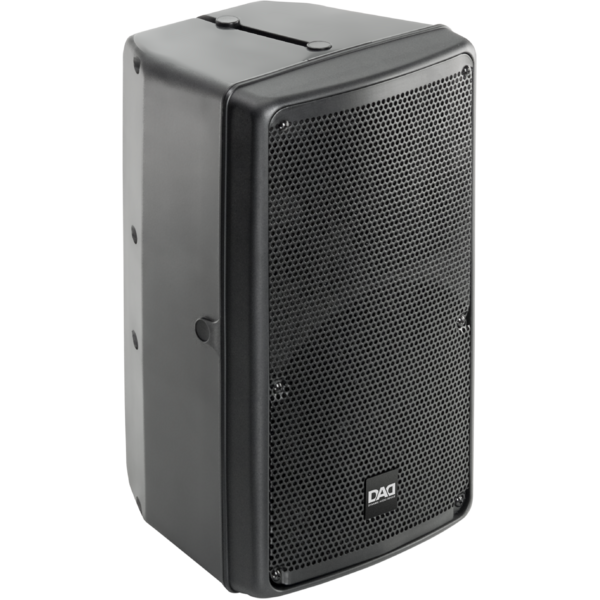

LIVE8

ORDER CODE: LIVE8

2-way passive loudspeaker, 120 W AES, 120dB SPL

Main features:

  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1.3''v.c.
  • Frequency response: 75-18000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Polypropylene enclosure, designed for stage-monitor application
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
See variants

PHOTO GALLERY

LIVE8
LIVE8
LIVE8
LIVE8
LIVE8

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1.3''v.c.
FEATURES
  • AES/program power: 120/240W
  • SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 94dB @1W/1m (free field)
  • Impedance: 8
  • SPL cont/peak: 114/120dB @1m (free field)
  • Frequency response: 75-18000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 2000Hz
  • Recommended amplifier up to: 240W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 60° monitor applications
PHYSICAL
  • Dimensions (WxHxD): 255x435x245mm / 10.04''x17.13''x9.65''
  • Weight: 8kg / 17.64lbs

Versions

Accessories & Related Products

AS255
AS255
(Optional)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
BAGLIVE8
BAGLIVE8
(Optional)
Fabric protection for LIVE8/LIVE8A
AS285
AS285
(Optional)
Wall bracket for LIVE8/LIVE8A speakers

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLive8_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareLive series preset2KB

Firmware
