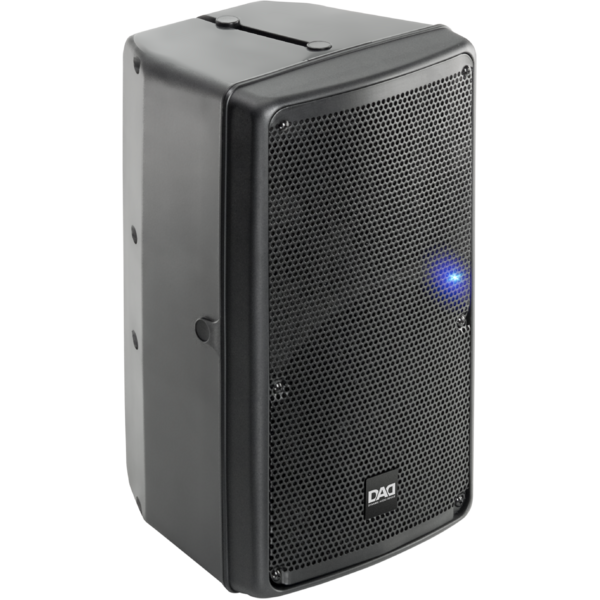

LIVE8A

ORDER CODE: LIVE8A

Active loudspeaker, AB-class bi-amp, 2-way 100 W+50 W, 117dB SPL

Main features:

  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1.3''v.c.
  • Frequency response: 70-18000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Polypropylene enclosure, designed for stage-monitor application
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
See variants

PHOTO GALLERY

LIVE8A
LIVE8A
LIVE8A
LIVE8A
LIVE8A

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1.3''v.c.
FEATURES
  • Built-in amp LF/HF: 100+50 /4/8Ohm
  • SPL max: 117dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 111/117dB @1m (free field)
  • Frequency response: 70-18000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 3500Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 100+50W /4/8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 60° monitor applications
PHYSICAL
  • Dimensions (WxHxD): 255x435x245mm / 10.04''x17.13''x9.65''
  • Weight: 9.5kg / 20.94lbs

Versions

Accessories & Related Products

BAGLIVE8
BAGLIVE8
(Optional)
Fabric protection for LIVE8/LIVE8A
AS285
AS285
(Optional)
Wall bracket for LIVE8/LIVE8A speakers
