LIVEPACK1500D
DAD
discontinued

LIVEPACK1500D

ORDER CODE: LIVEPACK1500D

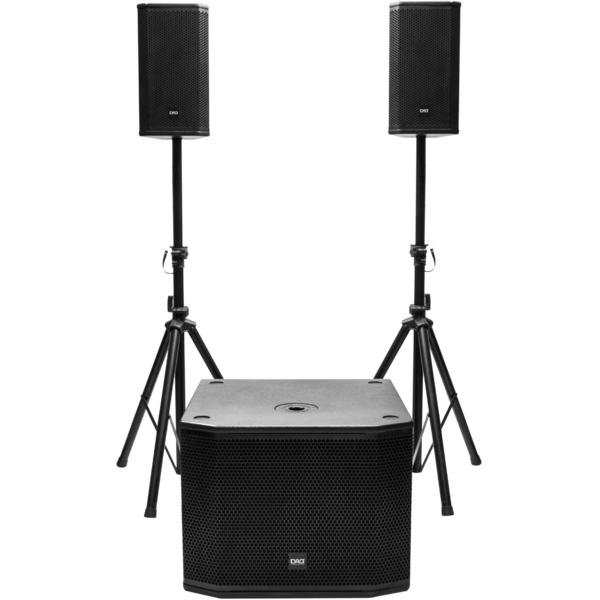

Active audio system, 1 subwoofer and 2 tops, D-class bi-amp, 3-way 1000 W+2x250 W, 130dB

Main features:

  • Low frequency: 15'' woofer/3''v.c.
  • Mid low frequency: 2x8'' woofer/3''v.c.
  • High frequency: 2x1'' driver/1.3''v.c.
  • Frequency response: 50-18000 Hz (±3dB)
  • Adjustable crossover: LPF:80/120 Hz - HPF 22, 80,125 Hz
  • Reproduction of voice and music for live and recorded performances
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: stereo amplified audio system
COMPONENTS
  • Low frequency: 15'' woofer/4''v.c.
  • Mid frequency: 2x8'' midrange / 2'' v.c.
  • High frequency: 2x1'' driver/1.3''v.c.
FEATURES
  • Amplified subwoofer: Built-in amp L.F. -1000 + M.H.F. 2x250W 8Ohm
  • Passive mid high: 2 unit x 150W AES
  • Adjustable crossover: LPF:80/200 Hz - HPF 22, 80,125 Hz
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 114/120dB @1m (free field)
  • Frequency response: 40-18000Hz (±3dB)
  • Coverage angle HxV: 90x60°
  • Cross over frequency: Hz LPF:80/200 Hz - HPF 22, 80,125 Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Power: LF 1000 + MF/HF 2X250W /8Ohm
  • Protection: limiter temp.
  • User controls: mic, line, master, bal, eq LF-HF, phase, LPF, HPF
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm, pin RCA unbal.
  • Output signal: 2 x 4 pole
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: L.F.18 - M.H.15mm / 0'' birchplywood
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 75° unit M.H. trapezoidal taper
  • Handles: L.F. unit 2 on side
PHYSICAL
  • Dimensions (WxHxD): L.F. 585x450x550 - M.H. 231x420x250mm / 0''x17.72''x21.65''
  • Weight: ..40-..29kg / 0lbs

Versions

Accessories & Related Products

AS210
AS210
(optional)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
