LUMI4COB
TRIBEby TRIBE
discontinued

LUMI4COB

ORDER CODE: LUMI4COB

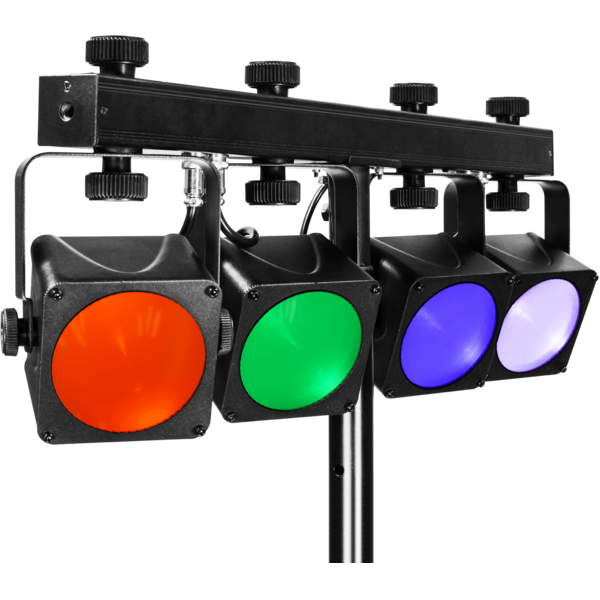

LUMI4COB is a plug & play portable LED wash light set for lighting mobile stages and clubs. LUMI4COB is composed of a lighting bar with 4 LEDs projectors based, the special optics reflectors in combination with 15 W COB (chip-on-board) LED give LUMI4COB an unprecedented light output capable of impressing and dazzling the audience. LED technology allows these luminaires to create striking effects with dynamic colour changes, powerful and synchronised operations.

Main features:

  • Design concept: 4 LEDs projectors
  • Effect type: independent dynamic colour washers, synchronised operation
  • Footswitch mode: 3 buttons controller with pedals (auto, sound, freeze, blackout)
  • Ergonomic travel bag included
See variants

PHOTO GALLERY

LUMI4COB
LUMI4COB
LUMI4COB
LUMI4COB
LUMI4COB
LUMI4COB
LUMI4COB

Technical specifications

LIGHT SOURCE
  • Source: 4x15W COB RGB / FC LEDs
  • Lux: 363lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 31°
  • Field angle: 42°
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Control units: footswitch mode: 3 buttons controller with pedals
  • Protocols: DMX512
  • DMX channels: 3 / 15channel
  • Pixel control: pixel2pixel control
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 61W
  • Max power consumption (at 120V): 64W
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: 360° adjustable hanging bracket - Stand
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 749x285x135mm / 29.49''x11.22''x5.31''
  • Weight: 4,7kg / 10.36lbs

Versions

Accessories & Related Products

<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumi4cob_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
LUMI4COB Firmware rev. 1.1
prolights_lumi4cob_3ch.hedDownload
prolights_lumi4cob_15ch.hedDownload

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLumi4cob_CAD_2D.dwg6MB
3DLumi4cob_CAD_3D.dwg4MB
Technical drawingLumi4cob_TECHNICAL_DRAWING.pdf810KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 19/06/2013 Improved save settings.
