LUMIPAR12Q
TRIBEby TRIBE
discontinued

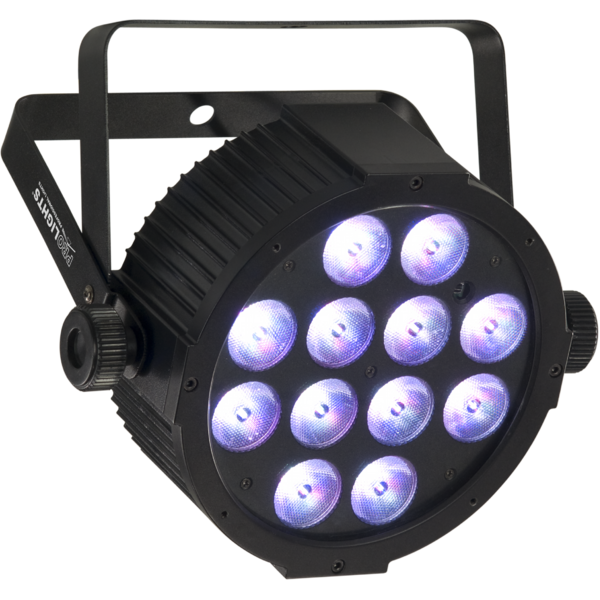

LUMIPAR12Q

LUMIPAR12Q is a super-slim PAR LED designed to be a multi-use wash-light for events and club installations. It's equipped with 12x8W high efficiency RGBW/FC LED light source, conceived to create bright, intense and saturated colors. LUMIPAR12Q is compatible with the infrared remote controller, for intuitive and interactive use without need any external DMX units.

Main features:

  • 12x8W RGBW/FC high-power LED
  • Flicker free operations
  • Silent operation and HD dimming system
See variants

PHOTO GALLERY

LUMIPAR12Q
LUMIPAR12Q
LUMIPAR12Q

Technical specifications

LIGHT SOURCE
  • Source: 12X8W RGBW LED
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°-45°
  • Field angle: 34°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3200K - 10000K
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Hardware on-board: filter frame
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4/8channel
  • Display: 4 chars display
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Operating temperature: -10° ~ +40°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (at 120V): 132W
  • Output (at 120V): 24 units on a single power line
PHYSICAL
  • IP rating: 20
  • IK rating: 07
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p IN/OUT
  • Power connection: IEC 10 A IN/OUT
  • Dimensions (WxHxD): 270x205x210mm / 10.63''x8.07''x8.27''
  • Weight: 2,4kg / 5.29lbs

Versions

Code
Beam angle
LUMIPAR12Q25
LUMIPAR12Q25 (DISCONTINUED)
25°
LUMIPAR12Q45
LUMIPAR12Q45 (DISCONTINUED)
45°

Accessories & Related Products

LUMIPARIRCH
LUMIPARIRCH
(optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar12q_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar12q_CAD_2D.dwg1MB
3DLUMIPAR12Q_3D.zip33MB
Technical drawingLumipar12q25_TECHNICAL_DRAWING.pdf319KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
