LUMIPAR18QPRO
PROLIGHTS

LUMIPAR18QPRO

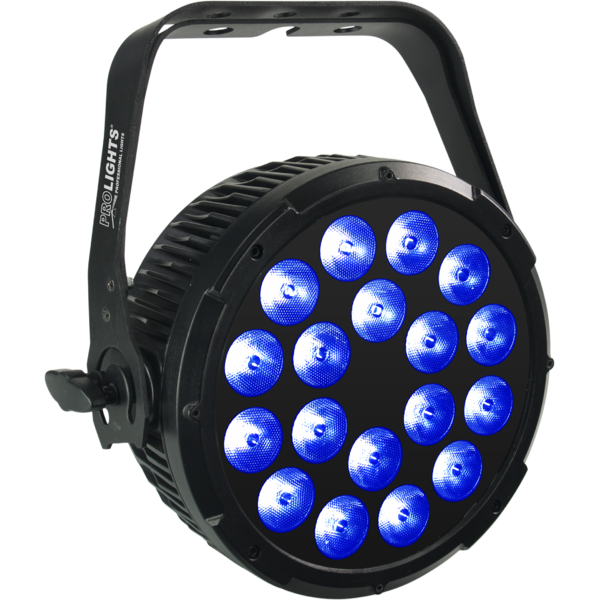

LUMIPAR18QPRO is a super-slim par LED for professional use, designed to be a powerful wash light in rental/touring applications. The high-efficiency RGBW/FC LED light source, the ultra-thin design and absence of fans make LUMIPAR18QPRO a big innovation compared to traditional par cans, offering higher versatility, easy setup and reduced carrying volume.

Main features:

  • 18x8W RGBW/FC high-power LED
  • Superior optical design to ensure advanced chromatic synthesis
  • Flicker free operations
  • Silent operation and linear dimming system
See variants

PHOTO GALLERY

LUMIPAR18QPRO
LUMIPAR18QPRO
LUMIPAR18QPRO
LUMIPAR18QPRO
LUMIPAR18QPRO
LUMIPAR18QPRO

Technical specifications

LIGHT SOURCE
  • Source: 18x8W RGBW LED
  • Luminous flux: 3577
  • Lux: (25°) 1758lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (18QPRO25) 25°, (18QPRO45) 45°
  • Field angle: (18QPRO25) 38°, (18QPRO45) 50°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3200~10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10channel
  • Display: LCD display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 118W
  • Max power consumption (at 120V): 121W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 44
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 302x239x259mm / 11.89''x9.41''x10.2''
  • Weight: 5kg / 11.02lbs

Versions

Code
Beam angle
LUMIPAR18QPRO25
LUMIPAR18QPRO25 (END OF LIFE)
25°
LUMIPAR18QPRO45
LUMIPAR18QPRO45 (END OF LIFE)
45°

Accessories & Related Products

ARCLUMIL25D38
ARCLUMIL25D38
(Optional)
Optic lens 15°, D.38mm
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar18qpro_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar18qpro_CAD_2D.dwg1MB
3DLumipar18qpro_CAD_3D.dwg20MB
Technical drawingLumipar18qpro_TECHNICAL_DRAWING.pdf237KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
