LUMIPAR18TRI
PROLIGHTS
discontinued

LUMIPAR18TRI

ORDER CODE: LUMIPAR18TRI

Main features:

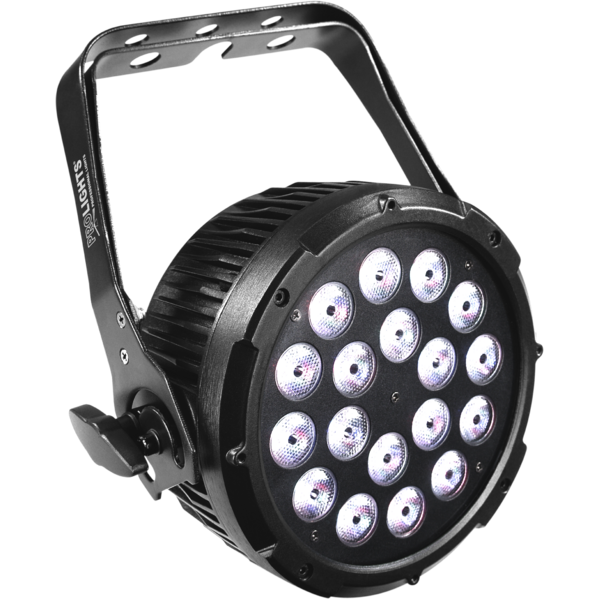

    LUMIPAR18TRI is a super-slim ParLED equipped with 18 x 3W high-power RGB/FullColor LED. Its super-slim and fan-free design makes LUMIPAR18TRI a multipurpose fixture, ideal to replace the traditional Parcans offering more versatility, easy setup and less carrying volume.

    Light source and optics
    • 18x3W RGB/FullColor high-power LED
    • Beam angle: 21°
    • Field angle: 42°
    • Color synthesis: RGB/FullColor color mixing (>16 million colors) for a limitless color range
    • LEDs average life span: > 50.000 hours

    Electronics and features
    • User panel through 4Char LED display
    • Several DMX selectable configurations (3, 4, 9 channels) for advanced or basic controlling
    3 channels: RGB
    4 channels: Dimmer, RGB
    9 channels: RGB, macro, strobe, auto programs, programs speed, dimmer
    • Auto mode: 5 built-in programs with execution speed adjustment
    • Static color mode: selection of static color
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)

    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Internal protection: IP54
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Filter frame included
    • Power unit: 100-240V 50/60Hz
    • Average power consumption: 60W (up to 9 fixtures power output)
    • Weight: 2,9 kg
    • Dimensions (WxHxD): 255x198x240 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar18tri_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
LUMIPAR18TRI Firmware rev. 2.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolight_lumipar18tri_3ch.hed Download
prolight_lumipar18tri_4ch.hed Download
prolight_lumipar18tri_9ch.hed Download
manufacturer fixture library (Link) Link
lumipar18tri_3ch.ssl Download
lumipar18tri_4ch.ssl Download
lumipar18tri_9ch.ssl Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLumipar18tri_CAD_2D.dwg2MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.1 STABLE 28/10/2015 Improved firmware functionality.
