LUMIPAR36VW
PROLIGHTS
discontinued

LUMIPAR36VW

ORDER CODE: LUMIPAR36VW

Main features:

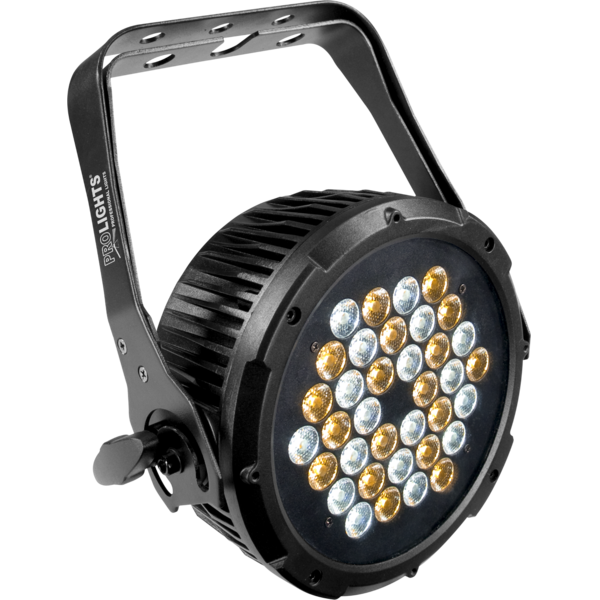

    LUMIPAR36VW is a super-slim ParLED equipped with 36 x 1W high-power Warm+Cold white LEDs.
    Its super-slim and fan-free design makes LUMIPAR36VW a multipurpose fixture, ideal to replace the traditional Parcans offering theatrical-quality whites (3200K-10000K range) and tints that render pigments and skin tones in their natural appearance.

    Light source and optics
    • 36x1W WW+CW high-power LED
    • Beam angle: 21°
    • Field angle: 42°
    • Color synthesis: Variable White for a full white temperature control
    • LEDs average life span: > 50.000 hours

    Electronics and features
    • User panel through 4Char LED display
    • Several DMX selectable configurations (2, 3, 7 channels) for advanced or basic controlling
    2 channels: WW,CW
    3 channels: Dimmer, WW, CW
    7 channels: Dimmer, WW, CW, Strobe, Auto - Program, Auto - Program speed, dimmer curve
    • Static color mode: selection of static color
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)

    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Internal protection: IP54
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Filter frame included
    • Power unit: 100-240V 50/60Hz
    • Average power consumption: 83W (up to 11 fixtures power output)
    • Weight: 2,8 kg
    • Dimensions (WxHxD): 256x198x232 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar36vw_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
LUMIPAR36VW Firmware rev. 3.1
manufacturer fixture library (Link) Link
prolights_lumipar36vw.d4Download
manufacturer fixture library (Link) Link
lumipar36vw_2ch.ssl Download
lumipar36vw_3ch.ssl Download
lumipar36vw_7ch.ssl Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.1 STABLE 23/11/2015 Improved firmware functionality.
