LUMIPAR56
PROLIGHTS
end of life

LUMIPAR56

ORDER CODE: LUMIPAR56

Main features:

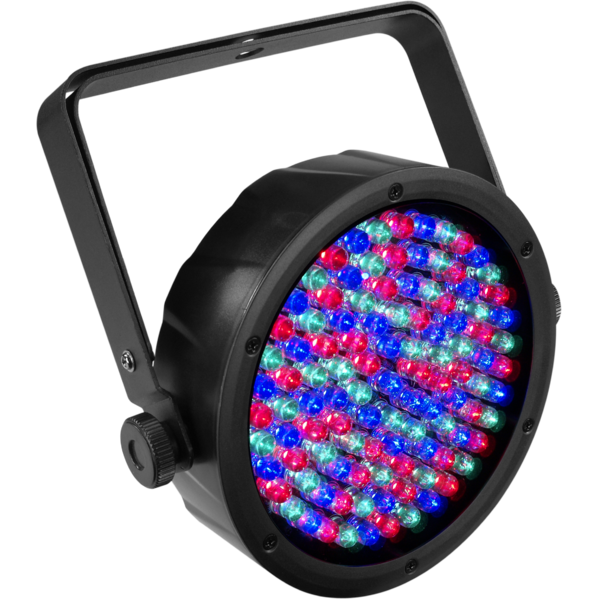

    LUMIPAR56 is asuper-slim ParLED equipped with 108 x 10 mm RGB LED, conceived for indoor venues and small events.
    Its super-slim and fan-free design makes LUMIPAR56 a multipurpose fixture as truss lighther, accent lighting, blinder and washer for clubs, replacing the old-fashioned and big parcans.

    Light source and optics
    • 108 RGB 10 mm LEDs (36 red, 36 green, 36 blue)
    • Beam angle: 21°
    • Field angle: 32°
    • Color synthesis: RGB color mixing (>16 million colors) for a limitless color range
    • LEDs average life span: > 50.000 hours

    Electronics and features
    • User panel through 4Char LED display
    • Several DMX selectable configurations (3, 7 channels) for advanced or basic controlling
    3 channels: RGB
    7 channels: RGB, macro, strobe, move, dimmer
    • Auto mode: 7 built-in programs with execution speed adjustment
    • Static color mode: selection of static color
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Sound mode: sound activation through built-in microphone with sensitivity adjustment
    • Linear and “stepless” transition between DMX values

    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Internal protection: IP20
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Average power consumption: 8W
    • Weight: 1,2 kg
    • Dimensions (WxHxD): 241x224x56 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download
LUMIPAR56 Firmware rev. 2.2
manufacturer fixture library (Link) Link
prolights_lumipar56.d4Download
manufacturer fixture library (Link) Link
prolights_lumipar56_3ch.hed Download
prolights_lumipar56_7ch.hed Download
manufacturer fixture library (Link) Link
lumipar56_3ch.ssl Download
lumipar56_7ch.ssl Download

Photometrics

File name File size Download

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2 STABLE 16/09/2014 Improved sound mode functionality. Is possible to deactivate sound mode throught dmx.
