LUMIPAR6Q

ORDER CODE: LUMIPAR6Q

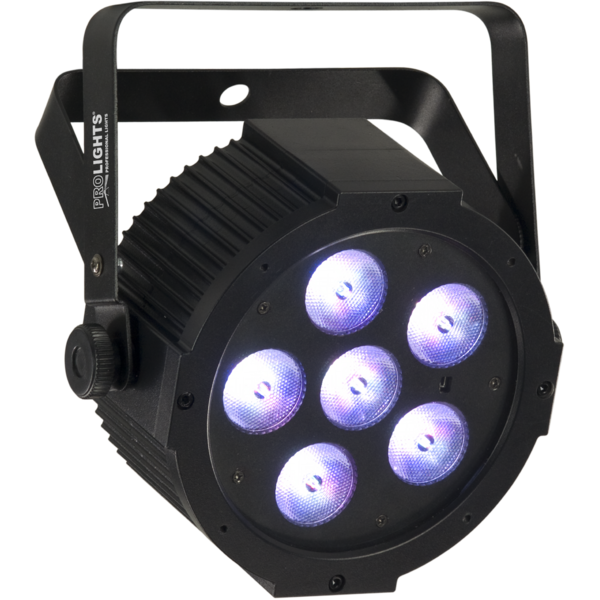

LUMIPAR6Q is a super-slim par LED designed to be a multi-use wash light for events and club installations. Equipped with 6x8W high-efficiency RGBW/FC LED light source, conceived to create bright, intense and saturated colours. LUMIPAR6Q is compatible with the infrared remote controller, for intuitive and interactive use without the need any external DMX units.

Main features:

6x8W high efficiency RGBW/FC LEDs

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 6x8W RGBW LED
CCT: 3200 - 10000
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 20°
Field angle: 34°

COLOUR SYSTEM

Colour mixing: RGBW / FC
White presets: 3200 - 10000K

VIDEOS

Accessories & Related Products

LUMIPARIRCH

(optional)

RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series

ARCLUMIL45D38

(optional)

Optic lens 45°, D.38mm

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download

User manual

	File name	File size	Download
	Lumipar6q_USER_MANUAL_ITEN.pdf	3MB

DMX chart & personalities

	File name	File size	Download

Photometrics

	File name	File size	Download
	prolights_lumipar6q_blue_20°.ies	14KB
	prolights_lumipar6q_full_20°.ies	14KB
	prolights_lumipar6q_green_20°.ies	14KB
	prolights_lumipar6q_red_20°.ies	14KB
	prolights_lumipar6q_white_20°.ies	14KB
	Download DIALux product catalogue	-
