LUMIPAR7QPRO
PROLIGHTS
end of life

LUMIPAR7QPRO

ORDER CODE: LUMIPAR7QPRO

LUMIPAR7QPRO is a super-slim par LED for professional use, designed to be a powerful wash-light in Rental/Touring applications. The high efficiency RGBW/FC LEDs light source, the ultra-thin design and the absence of fans make LUMIPAR7QPRO a big innovation compared to traditional parcans, offering higher versatility, easy setup and reduced carrying volume.

Main features:

  • 7 x 8 W RGBW/FC high-power LED
  • >Superior optical design to ensure advanced chromatic synthesis
  • >Flicker free operations
  • >Silent operation and linear dimming system
See variants

PHOTO GALLERY

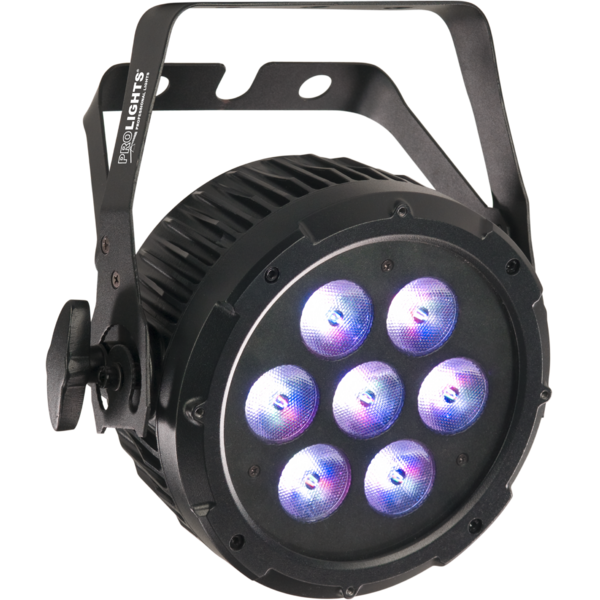

LUMIPAR7QPRO
LUMIPAR7QPRO

Technical specifications

LIGHT SOURCE
  • Source: 7x8W RGBW LED
  • Luminous flux: 1736
  • Lux: 934lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 34°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3200~10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4/6/10channel
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 43W
  • Max power consumption (at 120V): 43W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 44
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 240x184x208mm / 9.45''x7.24''x8.19''
  • Weight: 2,5kg / 5.51lbs

Versions

Accessories & Related Products

ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar7qpro_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DLumipar7qpro_CAD_3D.dwg39MB
Technical drawingLumipar7qpro_TECHNICAL_DRAWING.pdf211KB
