LUMIPAR7QTOUR
PROLIGHTS
discontinued

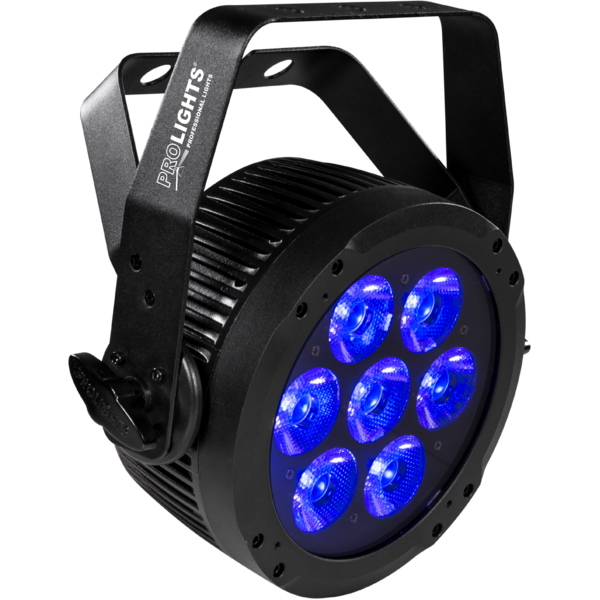

Lumipar 7QTour

ORDER CODE: LUMIPAR7QTOUR

7x10W tour proof high power RGBW full colour LED PAR

LUMIPAR7QTOUR is a super-slim PAR LED for professional use, designed to be a powerful wash light in rental/touring applications. The high efficiency RGBW/FC LED light source, the ultra-thin design and absence of fans make LUMIPAR7QTOUR a big innovation compared to traditional PAR CANS, offering higher versatility, easy setup and reduced carrying volume.

Main features:

  • LED Par with 7x10W RGBW LEDs
  • Die-cast aluminium housing
  • Flicker-free operation for IMAG and broadcast
See variants

PHOTO GALLERY

Lumipar 7QTour
Lumipar 7QTour
Lumipar 7QTour
Lumipar 7QTour
Lumipar 7QTour
Lumipar 7QTour

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGBW LEDs
  • CCT: Tunable 2800 K - 8000
  • Luminous flux: 2'213
  • Lux: 1'318lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 38°
  • Lens diameter: 45mm / 1.77''
  • Additional optics: 15° (opt) - 45° (opt)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3200 K - 10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 55W
  • Max power consumption (at 120V): 56W
  • Output (at 230V): 23 units on a single power line
  • Output (at 120V): 12 units on a single power line
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 266x196x225mm / 10.47''x7.72''x8.86''
  • Weight: 3.2kg / 7.05lbs

Versions

Accessories & Related Products

<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Optional)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar7qtour_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
LUMIPAR7QTOUR Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_lumipar7qt_4ch.hedDownload
prolights_lumipar7qt_6ch.hedDownload
prolights_lumipar7qt_10ch.hedDownload
manufacturer fixture library (Link) Link
lumipar7qpro_4ch.fdfDownload
lumipar7qpro_6ch.fdfDownload
lumipar7qpro_10ch.fdfDownload
lumipar 7q tour_mode1.sslDownload
lumipar 7q tour_mode2.sslDownload
lumipar 7q tour.ssl2Download
prolights_lumipar7qtour_ma2.zipDownload
manufacturer fixture library (Link) Link
lumipar 7q tour 4 channel.fix2Download
lumipar 7q tour 6 channel.fix2Download
lumipar 7q tour 10 channel.fix2Download
manufacturer fixture library (Link) Link
LUMIPAR7QTOUR Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_lumipar7qt_4ch.hed Download
prolights_lumipar7qt_6ch.hed Download
prolights_lumipar7qt_10ch.hed Download
manufacturer fixture library (Link) Link
lumipar7qpro_4ch.fdf Download
lumipar7qpro_6ch.fdf Download
lumipar7qpro_10ch.fdf Download
lumipar 7q tour_mode1.ssl Download
lumipar 7q tour_mode2.ssl Download
lumipar 7q tour.ssl2 Download
manufacturer fixture library (Link) Link
lumipar 7q tour 4 channel.fix2 Download
lumipar 7q tour 6 channel.fix2 Download
lumipar 7q tour 10 channel.fix2 Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLumipar7qtour_CAD_2D.dwg3MB
3DLumipar7qtour_CAD_3D.dwg23MB
Technical drawingLumipar7qtour_TECHNICAL_DRAWING.pdf327KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 15/12/2018 10 second default display backlight Rev. 1
Rev. 2
1.2 STABLE 21/08/2015 Improved the firmware functionality.
