LUMIPAR7VWPRO
PROLIGHTS
end of life

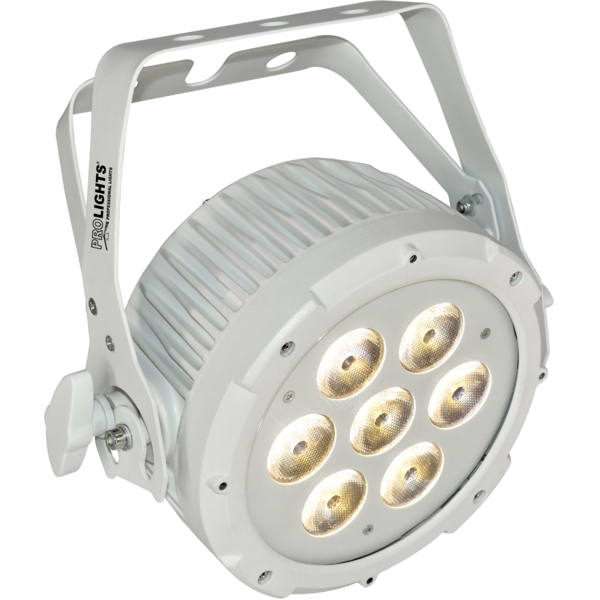

LUMIPAR7VWPRO

ORDER CODE: LUMIPAR7VWPRO

LUMIPAR7VWPRO is a super-slim ParLED for professional use, designed to be a powerful wash light in rental/touring applications. The high efficiency variable white LED light source, the ultra-thin design and absence of fans make LUMIPAR7VWPRO a big innovation compared to traditional par cans, offering higher versatility, easy setup and reduced carrying volume.

Main features:

  • 7x6W Tunable White LED source (WW 3000K+CW6000K)
  • Indipendent CTC channel featuring from 3000K to 6000K
  • Superior optical design to ensure advanced chromatic synthesis
  • Flicker free operations
  • Silent operation and linear dimming system
See variants

PHOTO GALLERY

LUMIPAR7VWPRO
LUMIPAR7VWPRO
LUMIPAR7VWPRO
LUMIPAR7VWPRO
LUMIPAR7VWPRO

Technical specifications

LIGHT SOURCE
  • Source: 7x6W Warm White + Cold White LEDs
  • CCT: 3000-6000
  • Luminous flux: 1339
  • Lux: 1290lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 39°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • White presets: 3000~6000K
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: white
CONTROL
  • Protocols: DMX512
  • DMX channels: 2 / 3 / 7channel
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 36W
  • Max power consumption (at 120V): 36W
  • Output (at 230V): 32 units on a single power line
PHYSICAL
  • IP rating: 44
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: 3p IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 228x184x208mm / 8.98''x7.24''x8.19''
  • Weight: 2,5kg / 5.51lbs

Versions

Accessories & Related Products

ARCLUMIL45D38
ARCLUMIL45D38
(optional)
Optic lens 45°, D.38mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar7vwpro_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar7vwpro_CAD_2D.dwg2MB
3DLumipar7vwpro_CAD_3D.dwg39MB
Technical drawingLumipar7vwpro_TECHNICAL_DRAWING.pdf210KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
