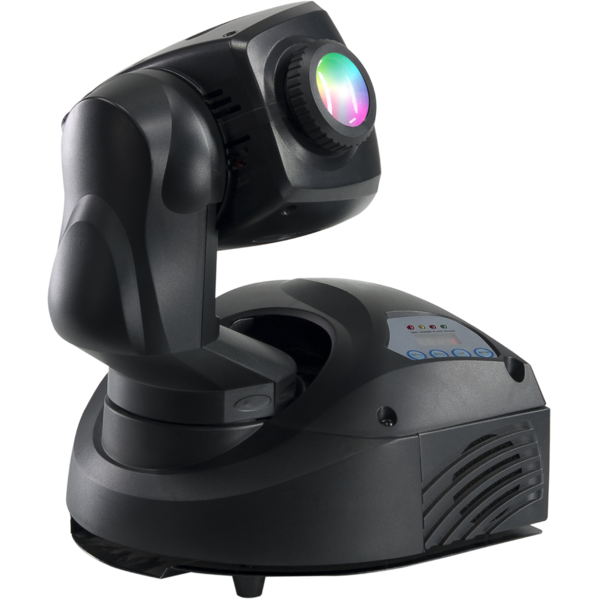

M200LED
PROLIGHTS
discontinued

M200LED

ORDER CODE: M200LED

Main features:

    • Light source: Cree 10W high efficiency LED
    • Led life span: > 75,000 h
    • Projection angle: 13°
    • Focus: manual focusing lens
    • Dimmer: linear 0-100%
    • Shutter: independent with adjustable strobe speed (1-10 flash per sec.)
    • Colour wheel: 8 dichroic filters + open (linear-stepless selection).
    • Bidirectional rainbow effect
    • Gobos wheel: 8 rotating gobos + open
    • All gobos are rotating and easily replaceable
    • "Gobo shake" effect and continuous rotation
    • Easy show: built-in programs with automatic/sound activated mode enabled by LED control panel or by EC800 remote control (not included)
    • User interface: 4-digit multi-function LED display
    • Control: DMX512 protocol trough XLR-3p connection, 6 channels at 8bit
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating
    • Body: high resistance polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Power supply: 200-240V 50/60Hz
    • Weight: 5,4 Kgs
    • Dimensions (WxHxD): 185x310x240 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualM200led_USER_MANUAL_ITEN.pdf958KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
