MA18SP
DAD

MA18SP

ORDER CODE: MA18SP

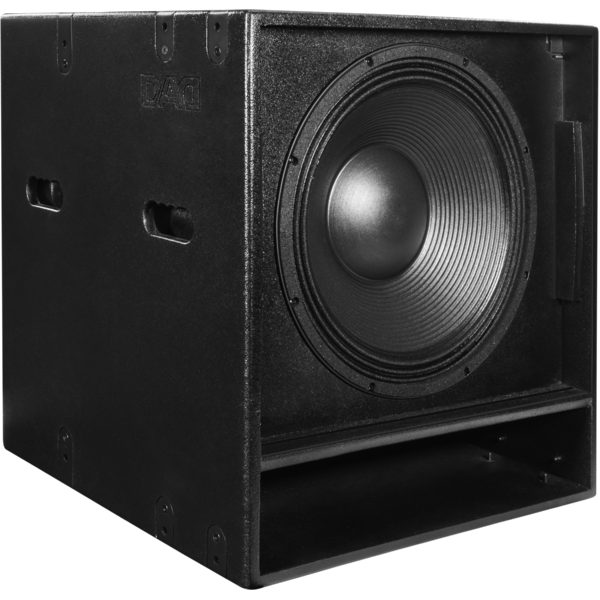

Aerodynamic bass-reflex passive subwoofer, 1700 W AES, 134dB SPL

Main features:

  • Low frequency: 18'' woofer/4.5''v.c.
  • Frequency response: 30-150 Hz (±3dB)
  • High pressure on low frequencies in large indoor/outdoor venues
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 18'' woofer/4.5''v.c.
FEATURES
  • AES/program power: 1700/3400W
  • SPL max: 134dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 97dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 128/134dB @1m (free field)
  • Frequency response: 35-150Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 80-150Hz
  • Recommended amplifier up to: 3400W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Handles: 4 on side
  • Hardware: 35 mm mounting pole
PHYSICAL
  • Dimensions (WxHxD): 615x6850x636mm / 24.21''x269.69''x25.04''
  • Weight: 51kg / 112.44lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download
    Letter datasheetMa18sp_A4_DATASHEET_(EN).pdf646KB
    Letter datasheetMa18sp_A4_DATASHEET_(EN).pdf646KB

    User manual

    File name File size Download

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download
    SoftwareMA preset for DPX20605KB
    SoftwareMA preset for DXZ26143KB
    SoftwareMA preset for DPX408048KB
