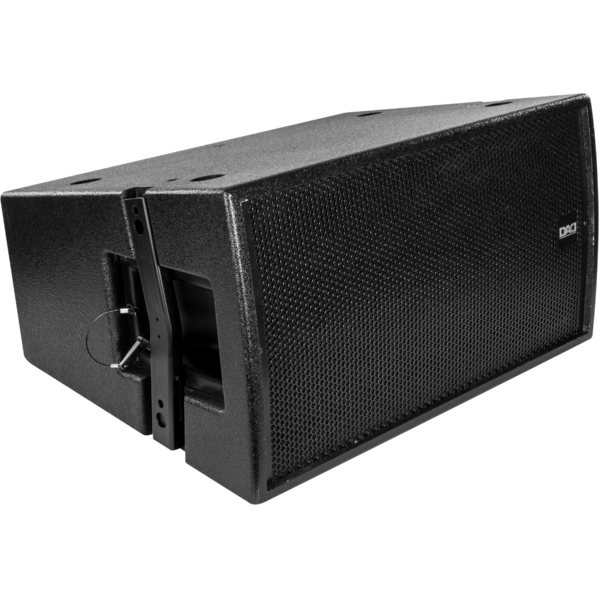

MA615A
DAD
discontinued

MA615A

ORDER CODE: MA615A

Wide-dispersion active module for line-array, 1500 W D-class amplifier, 2-way, 137dB SP

Main features:

  • Low frequency: 2x10'' neodymium woofer/2.6''v.c.
  • High frequency: 1.4'' neodymium driver/3''v.c.
  • Frequency response: 65-18000 Hz (±3dB)
  • Coverage angle HxV: 100x30°
  • Hi-definition system for reproduction of voice and music in live and recorded performance
  • For sound installations in environments requiring dynamics and high sound pressure
  • Birch plywood enclosure
  • DSP with 4 presets ( 1-3/4-6 unit - full range/ high pass filter) for selection of optimal frequency response
See variants

PHOTO GALLERY

MA615A
MA615A
MA615A
MA615A
MA615A
MA615A
MA615A

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 10'' neodymium woofer / 2.6'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • Built-in amp LF/HF: 1500W
  • SPL max: 137dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 131/137dB @1m (free field)
  • Frequency response: 65-18000Hz (±3dB)
  • Coverage angle HxV: 100x30°
  • Cross over frequency: 1100Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: 1500 digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: 1-3/4-6 unit - full range/ high pass filter
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik XLR IN/OUT
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: fixed angle bracket, M8 eyebolt, 35 mm pole mount
  • Angle: 15° trapezoidal taper
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 656x364x497mm / 25.83''x14.33''x19.57''
  • Weight: 30kg / 66.14lbs

Versions

Accessories & Related Products

MA4SK
MA4SK
(Optional)
Plywood skate for 2 pcs MA615/MA605, breaking swivel wheels
MA6FC
MA6FC
(Optional)
MA6BARJE
MA6BARJE
(Optional)
Compact flying-bar for MA605/MA615 line array system
