MA615P
DAD

MA615P

ORDER CODE: MA615P

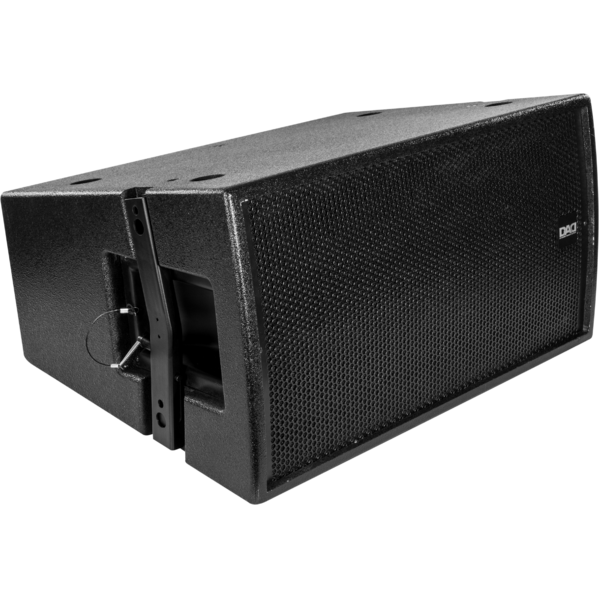

Wide-dispersion passive module for line-array, 2-way 500 W AES, 137dB SPL

Main features:

  • Low frequency: 2x10'' neodymium woofer/2.6''v.c.
  • High frequency: 1.4'' neodymium driver/3''v.c.
  • Frequency response: 65-18000 Hz (±3dB)
  • Coverage angle HxV: 100x30°
  • Hi-definition system for reproduction of voice and music in live and recorded performance
  • For sound installations in environments requiring dynamics and high sound pressure
  • Birch plywood enclosure
See variants

PHOTO GALLERY

MA615P
MA615P
MA615P
MA615P
MA615P
MA615P
MA615P

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 10'' neodymium woofer / 2.6'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • AES/program power: 500/1000W
  • SPL max: 137dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 100dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 131/137dB @1m (free field)
  • Frequency response: 70-18000Hz (±3dB)
  • Coverage angle HxV: 100x30°
  • Cross over frequency: 1100Hz
  • Protection: H.F. signal compression
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: fixed angle bracket, M8 eyebolt, 35 mm pole mount
  • Angle: 15° trapezoidal taper
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 656x364x497mm / 25.83''x14.33''x19.57''
  • Weight: 28kg / 61.73lbs

Versions

Accessories & Related Products

MA4SK
MA4SK
(Optional)
Plywood skate for 2 pcs MA615/MA605, breaking swivel wheels
MA6FC
MA6FC
(Optional)
MA6BARJE
MA6BARJE
(Optional)
Compact flying-bar for MA605/MA615 line array system

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMa615p_A4_DATASHEET_(EN).pdf381KB

User manual

File name File size Download
User manualMa615p_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DMa615p_CAD_2D.dwg1MB
Technical drawingMa615p_TECHNICAL_DRAWING.pdf305KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareMA preset for DPX20605KB
SoftwareMA preset for DXZ26143KB
SoftwareMA preset for DPX408048KB
