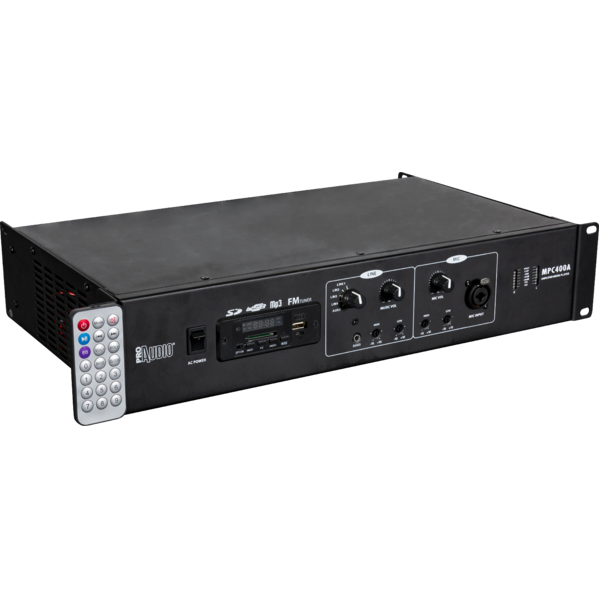

MPC400A
PROAUDIO

MPC400A

ORDER CODE: MPC400A

MPC400A is a multi-purpose stereo amplifier 2 x700w/4 Ohm with multi-media player and FM tuner.

Main features:

  • It is designed for permanent or mobile installations where easy control of music is important (eg. restaurants, gyms stores).
  • MPC400A offers digital playback from SD cards or USB sticks.
  • The MPC400A amplifier allows full control of MP3 playback even with remote control, microphone input (XLR / 1 / 4 combo), 5 inputs (RCA / jack 3.5) and the master volume control of high and low tones. Moreover, the output line (RCA) and balanced 3-pole XLR you to connect an additional amplifier.
See variants

PHOTO GALLERY

MPC400A
MPC400A
MPC400A
MPC400A

Technical specifications

AMPLIFIED MIXER
  • Channels: 2
  • Circuit class: digital
OUTPUT
  • Single channel power: 400/700 8/4 Ohm
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.1%
  • Input impedance: 10kΩ unbalance
  • Signal/Noise rate: >100dB
POWER SUPPLY STAGE
  • Type: Switching
  • Operating voltage/frequency: 230V (+/- 5%) 50Hz
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
FUNCTIONS
  • Media player: MP3/USB/FM tuner
  • Tone controls output: 100 Hz, 10kHz (±12dB)
  • Input volume control: mic, line1/2/3/4/aux
  • Output volume control: output master
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR combo (mic), pin RCA, Jack 3.5 mm
  • Output signal: XLR bal. pin RCA unbal. 2x4 pole, binding post
  • Power connection: VDE
PHYSICAL
  • Cooling: forced air with fan
  • Dimensions (WxHxD): 485x88x272mm / 19.09''x3.46''x10.71''
  • Rack unit: 2
  • Weight: 7kg / 15.43lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualMpc400a_USER_MANUAL.pdf903KB
