NOVASFP4K
NOVASTAR

NOVASFP4K

ORDER CODE: NOVASFP4K

- 10GBASE-LR/LW Ethernet - SONET OC-192 / SDH - 10G Fibre Channel

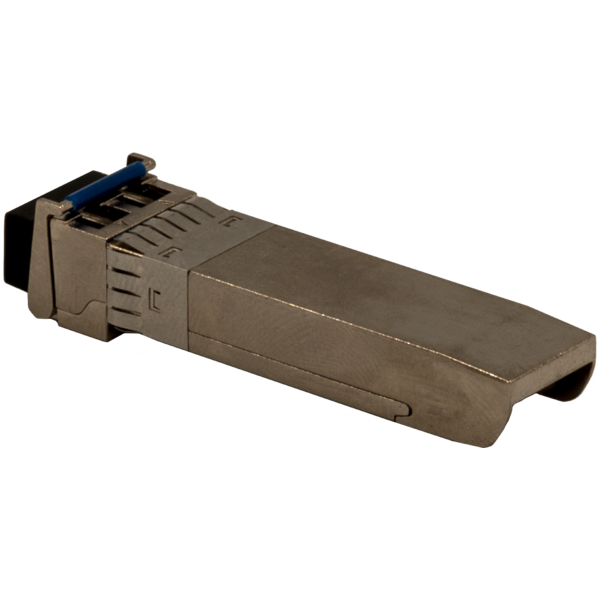

SFP+ is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. Theconverts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links. The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Main features:

  • - Supports 9.95 to 11.3Gb/s bit rates
  • - Hot-Pluggable
  • - Duplex LC connector
  • - 1310nm DFB transmitter, PIN photo-detector
  • - SMF links up to 10km
  • - Temperature Range: 0~ 70°C
  • - Power Supply :+3.3V
  • - Power consumption
  • - 2-wire interface for management specications compliant with SFF 8472 digital diagnostic
  • monitoring interface
  • - RoHS compliant
See variants

PHOTO GALLERY

NOVASFP4K
NOVASFP4K
NOVASFP4K
NOVASFP4K

Technical specifications

ELECTRONICS
  • Operating temperature: 0 - 70 °C
ELECTRICAL
  • Max power consumption: 1W
  • Mains power supply: 4V max
PHYSICAL
  • Dimensions (WxHxD): 14x13x57mm / 0.55''x0.51''x2.24''

Versions
