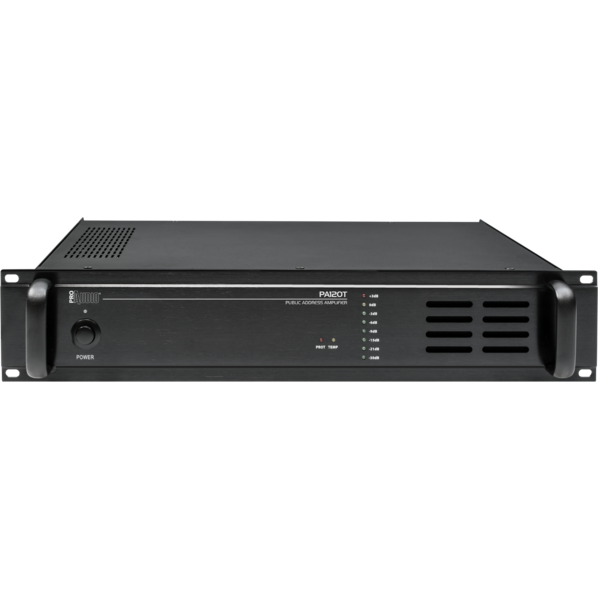

PA120T
PROAUDIO

PA120T

ORDER CODE: PA120T

Mono amplifier with the output transformer.

Main features:

  • Output: low impedance (4 -16 Ohm) and constant voltage (70,100 V).
  • Input/link: balanced XLR Line.
  • Output: screw terminal block.
  • Switchable 400 Hz high-pass filter.
  • LED Indicator output level.
  • Thermal protection and short circuit.
  • It can be powered at 24 Vdc.
  • 2U 19'' standard rack.

PHOTO GALLERY

Technical specifications

AMPLIFIER
  • Channels: 1
  • Circuit class: analog
OUTPUT
  • Power at constant voltage (70/100V): 120W
  • Power at low impedance (4 Ohm): 120W
AUDIO SPECIFICATIONS
  • Frequency responce: 60 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <1%
  • Input impedance: 10kΩ
  • Signal/Noise rate: >90dB
POWER SUPPLY STAGE
  • Type: Trasformer
  • Operating voltage/frequency: 230 V AC (+/- 5%) / 24 V DC
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
FUNCTIONS
  • Volume control: -12 to 0dB
  • HPF selector: 400Hz
INDICATORS
  • Indicators: LED bar - signal level, over temperature and protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: screw terminal block
  • Power connection: VDE
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 483x89x377mm / 19.02''x3.5''x14.84''
  • Rack unit: 2
  • Weight: 13kg / 28.66lbs
