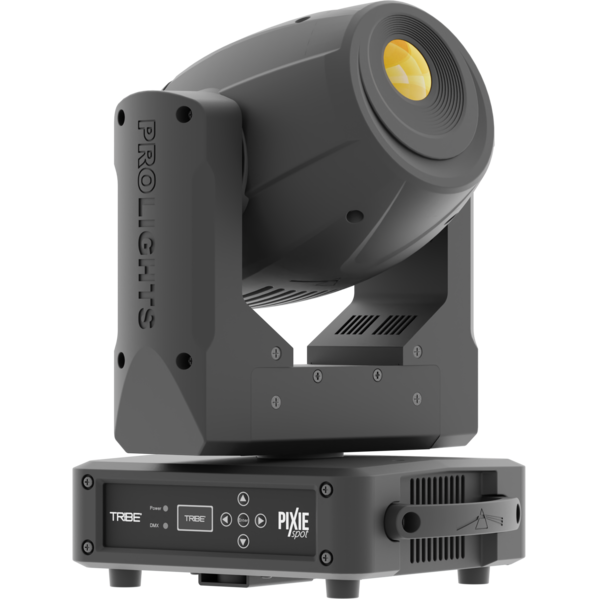

Pixie Spot

60W moving spot with RGBW LED source

Pixie Spot was the first TRIBE spot moving head to deliver a full spectrum chromatic synthesis, equipped with a 60W RGBW/FC LED light source to perform limitless brightness, intense and saturated colours as well as proper whites. Pixie Spot can be also controlled wireless through the optional USB Wi-Fi transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 60W RGBW/FC Osram Ostar LED source
  • Colour mixing featuring rich saturated and pastel colours and white reproduction
  • Effect section equipped with 3f circular prism
  • Gobo wheel: 7 rotating gobos
  • USB IN for control through SmartColor app through Wi-Fi USB
See variants

PHOTO GALLERY

Pixie Spot
Pixie Spot
Pixie Spot
Pixie Spot
Pixie Spot
Pixie Spot

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram LED
  • Luminous flux: 1'069
  • Lux: 1'682lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 18°
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable
  • Gobo size: outer Ø 16.9 mm; image Ø 14 mm; thickness 0.2 ÷ 1.1 mm
  • Circular prism: 3f with bi-directional rotation
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 15 / 18 / 23channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 / 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 118W
  • Max power consumption (at 120V): 120.3W
  • Output (at 230V): 17 units on a single power line
  • Output (at 120V): 9
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 253x352x192mm / 9.96''x13.86''x7.56''
  • Weight: 7kg / 15.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
PIXIESPOTBK
PIXIESPOTBK (DISCONTINUED)
Black
PIXIESPOTWH
PIXIESPOTWH (END OF LIFE)
White

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
FCLPIXIESW
FCLPIXIESW
(Optional)
Flight case for 6 PIXIEWASH, PIXIESPOT
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixiespot_A4_DATASHEET_(EN).pdf160KB
Letter datasheetPixiespot_A4_DATASHEET_(IT).pdf157KB
Letter datasheetPixiespot_LETTER_DATASHEET_(EN).pdf160KB

User manual

DMX chart & personalities

File name File size Download
DMX chartPixiespot_DMX_CHARTS.pdf48KB
PIXIESPOT Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_pixiespot.d4Download
manufacturer fixture library (Link) Link
prolight_pixiespot_15ch.hedDownload
prolight_pixiespot_18ch.hedDownload
prolight_pixiespot_23ch.hedDownload
manufacturer fixture library (Link) Link
pixiespot_15ch.fdfDownload
pixiespot_18ch.fdfDownload
pixiespot_23ch.fdfDownload
pixiespot_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@pixiespot@23_channel@created_by_sille.xmlDownload
manufacturer fixture library (Link) Link
pixiespot_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixiespot 15 channel.fix2Download
pixiespot 18 channel.fix2Download
pixiespot 23 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPPixiespot_3D.skp7MB
3D RFAPixiespot_3D.rfa3MB
2DPixiespot_CAD_2D.dwg6MB
3DPixiespot_CAD_3D.dwg3MB
Technical drawingPixiespot_TECHNICAL_DRAWING.pdf318KB
VectorWorksPIXIESPOT_SYMBOLS.zip880KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportPixiespot_NOISE_REPORT.pdf840KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 08/03/2019 Added Studio mode Added menù function: switch on/off led on the base.
