PIXROLL6
TRIBEby TRIBE
discontinued

PIXROLL6

ORDER CODE: PIXROLL6

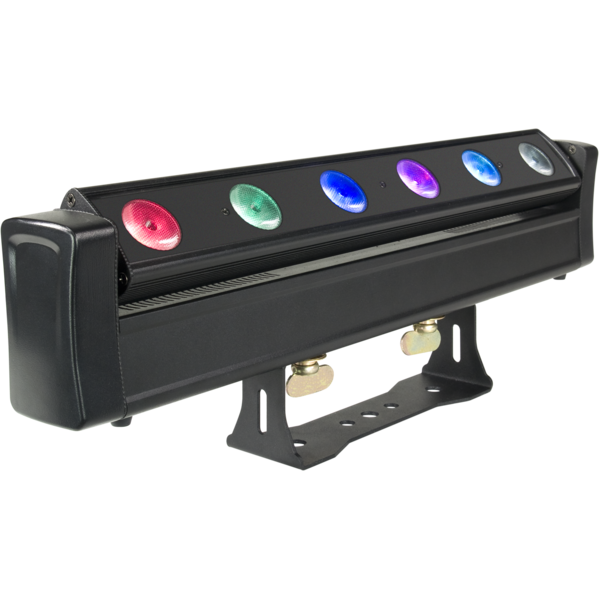

PIXROLL6 is the first motorized linear LED luminaire of Prolights range, conceived to achieve high-brightness and versatility to traditional LED batten. The light source is composed by 6x8W RGBW/FC LEDs that can be controlled in pixel to pixel mode, with 250° motorized tilt inclination through DMX. The motorization of the Tilt axis allows the addition of numerous options to this luminaire, such as the creation of partitions, barriers or mobile virtual doors.

Main features:

  • 6 x 8W RGBW/FC high-efficiency LEDs
  • >Pixel control of every individual LED
  • >Motorized tilt axis with rotation to 250°
  • >Flicker free operations

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 6x8W RGBW LED
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 17°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3200~10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt angle: 250° motorised tilt axis with rotation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 6/8/12/26channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-28 Hz, electronic
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 55W
  • Output (at 230V): 33 units on a single power line
PHYSICAL
  • IP rating: 33
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: 3p IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 560x65x196mm / 22.05''x2.56''x7.72''
  • Weight: 3kg / 6.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA

Versions

Accessories & Related Products

ARCLUMIL25D38
ARCLUMIL25D38
(included)
Optic lens 15°, D.38mm
ARCLUMIL45D38
ARCLUMIL45D38
(optional)
Optic lens 45°, D.38mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixroll6_A4_DATASHEET_(EN).pdf216KB

User manual

File name File size Download
User manualPixroll6_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
PIXROLL6 Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_pixroll6.d4Download
manufacturer fixture library (Link) Link
prolight_pixroll6_6ch.hedDownload
prolight_pixroll6_10ch.hedDownload
prolight_pixroll6_26ch.hedDownload
manufacturer fixture library (Link) Link
pixroll6_6ch.fdfDownload
pixroll6_8ch.fdfDownload
pixroll6_10ch.fdfDownload
pixroll6_26ch.fdfDownload
pixroll6_30ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@pixroll_6@6_channel@ma_library_update_v13.5.xmlpDownload
prolights@pixroll_6@8_channel@ma_library_update_v13.5.xmlpDownload
prolights@pixroll_6@10_channel@ma_library_update_v13.5.xmlpDownload
prolights@pixroll_6@26_channel@ma_library_update_v13.5.xmlpDownload
prolights@pixroll_6@30_channel@ma_library_update_v13.5.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixroll 6 6 channel.fix2Download
pixroll 6 8 channel.fix2Download
pixroll 6 10 channel.fix2Download
pixroll 6 26 channel.fix2Download
pixroll 6 30 channel.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DPixroll6_CAD_3D.dwg5MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 28/10/2015 Improved firmware functionality.
