REFLEXS
PROLIGHTS
discontinued

REFLEXS

ORDER CODE: REFLEXS

Main features:

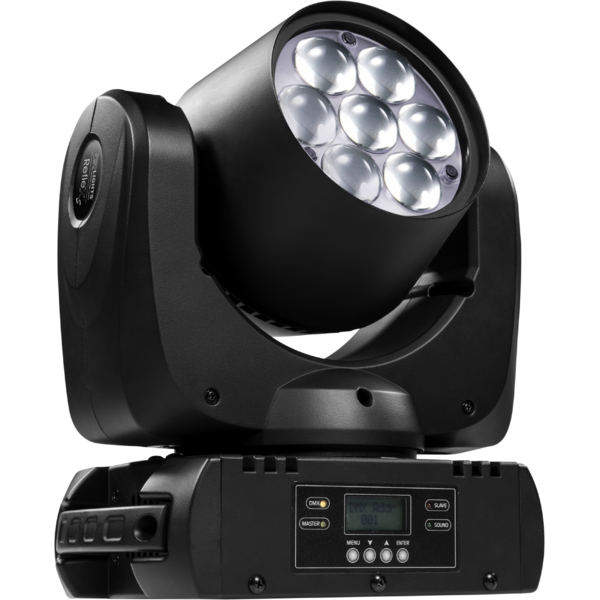

    REFLEXs is the compact version of the popular REFLEX luminaire, , featuring a special single-lens optics with fully pre-mixed colors and a wide angle fast-zoom in amazingly compact dimensions.The peculiar single-lens optical system with plano-convex endings enhances the 7x10W Osram Ostar FullColor LED source through a reflecting technique implying colors to be pre-mixed in optical channels. A technical solution allowing a chromatic naturalism that is simply out of reach for LED-powered projectors of previous generations.REFLEXs also features a 10°-60° unrivalled zoom to have fantastic beam effects with great definition or to angle wide for high-diffusion wash looks. Excellent efficiency and perfect chromatic uniformity are maintained throughout the zoom range.REFLEXs is extremely efficient, offering an unprecedent output and features for a such small and lightweight (5,7Kg) lighting device, becoming a unique device in its range.Extreme speed and precision of movements is guaranteed by the ultra-lightweight chassis and by usage of 3-step motors, allowing REFLEXs to be as fast as the moving mirror of scanners in its movements.Projection of all color shades is remarkably natural and uniform, with brilliant saturated colors across beautiful pastels to different shades of color temperature for white.High efficiency of cooling system and optics allow REFLEXs to be extremely silent even for those noise-sensitive environments like theatres and TV studios.Power consumption is limited to 240W only, daisy-chain of several fixtures on the same power line makes installation easier and faster.

    Light source and optics
    • 7 x 10W RGBW FullColor Osram Ostar LEDs
    • Lumens: 1600 lm
    • Lux @3m: 5'000
    • Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
    • White temperature presets: 3200K~10000K
    • Beam angle: 10°-60° Fast-Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000 h
     Dimmer/Shutter/Strobe/Colors
    • 0-100% linear dimmer
    • 4 different dimming curves available
    • Independent shutter and fading effects with adjustable speed
    • Strobe: Electronic, 1-20 flash per second
    • Virtual color wheel with LEE and rainbow presets
    • CTC control through independent DMX channel
    • Backlit single-lens optics for stunning visual effects
     Electronics
    • Black&White& White LCD display for simplified access to control menu, configuration and DMX addressing
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (>400Hz)
    • DMX configuration: 15 channels
    • Unit reset: through control panel or via DMX
    • Cooling: forced ventilation with variable-speed low-noise fans, no heat generation
     Structure and moving body
    • Hi-resistance polymer case designed for improved heat dissipation
    • Internal protection: IP33
    • Power cable (shuko 1,5mt) included
    • 3phase motor for precise and ultra-fast moves
    • Motion Angle: Pan = 540° Tilt = 220°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working position through "quick lock" omega brackets (included)
     Power supply
    • Power supply: 100-240V 50/60Hz
    • Connections: PowerCON IN/OUT
    • Power output allowing up to 16 units to be connected on a single power line (at 230V)
    • Max power consumption: 105W
     Weight and dimensions
    • Weight: 5,7 kg
    • Dimensions (WxHxD): 258x304x167 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualReflexs_USER_MANUAL_ITEN.pdf4MB

    DMX chart & personalities

    File name File size Download
    REFLEXS Firmware rev. 1.0
    manufacturer fixture library (Link) Link
    prolights_reflexs.d4Download
    reflexs led wash-beam.ssl2Download
    prolights@reflex_s@00@initial.xmlpDownload
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware


    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: {Upbox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.0 STABLE 26/09/2018
