SIGMAX26BS1X1BF
PROLIGHTS

SigmaPix 26BS1X1BF

ORDER CODE: SIGMAX26BS1X1BF

Special S indoor rental 2,6 mm LED screen, 50x50cm tile with full black LEDs

SigmaPix 26B is a rental LED screen for indoor use with a 2,6 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.
The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.
Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.
SigmaPix 26B tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 8 kg per panels (32 kg per sqm)

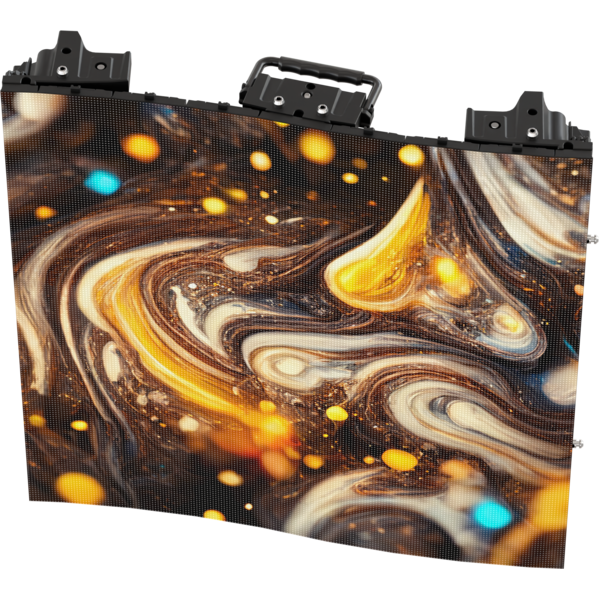

SigmaPix 26B is truly creative and it is enriched by the special S and C tiles to achieve unprecedented design. The S tile is a flexible panel, that it is designed with a flex PCB allowing to reach a curve angle of +40° and - 40° within one single cabinet. The C Tile is a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.
The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Single person installation, auto lock design, scratch protection and flip corner shield
  • Fast LED Module and PSU replacement
  • Built in curve mechanics for +40° / -40° concave & convex
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5253
  • LED source: Kinglight SMD 1515 full black
  • Pixel pitch: 2.6mm / 0.1''
  • Panel resolution: 192x192pixels
  • Module resolution: 192x48pixels
  • Luminous flux: 1000nit
  • Contrast: 4.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/24 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
  • Dead Pixel Ratio: <0.002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 35W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 140W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC220V / 0.55A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: waterproof Seetronic RJ45
  • Signal output: waterproof Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 500x125mm / 19.69''x4.92''
  • Panel size(WxHxD): 500×500x83mm / 19.69''x3.27''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 8kg / 17.64lbs
  • Weight per square meter: 32kg / 70.55lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
BODY
  • Body: Die-cast aluminium housing
  • Curve configurations: convex and concave -40° / +40°
  • Body colour: black
PHYSICAL
  • IP rating: IP30
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, cURus

Versions

Accessories & Related Products

SXFCM80261X1
SXFCM80261X1
(Optional)
Flightcase 8 in1 for SIGMAX26B1X1BF and SIGMAX26BS1X1BF
KSXHGB01SLR
KSXHGB01SLR
(Optional)
Fly bar / ground bar for SIGMAX26BS1X1BF
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
SX26BSXJ
SX26BSXJ
(Optional)
Metal joint used to connect SIGMAX26BS1X1BF to SIGMAX26B1X1BF and KAPPAX26B1X1BF series
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
OXACL10
OXACL10
(Optional)
Power cable for LED display series, Seetronic, L.10 m
SXDCL01
SXDCL01
(Optional)
Data cable for SIGMAX LED display series assembled with RJ45, IP65, L 140 cm
SXDCL10
SXDCL10
(Optional)
Data cable for SIGMAX LED display series assembled with RJ45, IP65, L 10 m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSigmax26bs1x1bf_A4_DATASHEET_(EN).pdf(21/05/2025)4MB
Tender SpecificationSigmax26bs1x1bf_TENDER_SPECIFICATION.pdf(11/07/2023)2MB

User manual

File name File size Download
User manualSigmax26bs1x1bf_USER_MANUAL_EN.pdf(03/08/2023)72MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPSigmax26bs1x1bf_3D.skp(28/08/2025)78KB
3DSigmax26bs1x1bf_CAD_3D.dwg(28/08/2025)202KB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx(12/07/2023)7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx(12/07/2023)11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareAUR2D0513-B - 3840 Hz(09/12/2025)14KB
SoftwareAUR2E2369B - 3840 Hz(09/12/2025)209KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.7.0.64 STABLE 10/06/2023
