SLASH
PROLIGHTS
discontinued

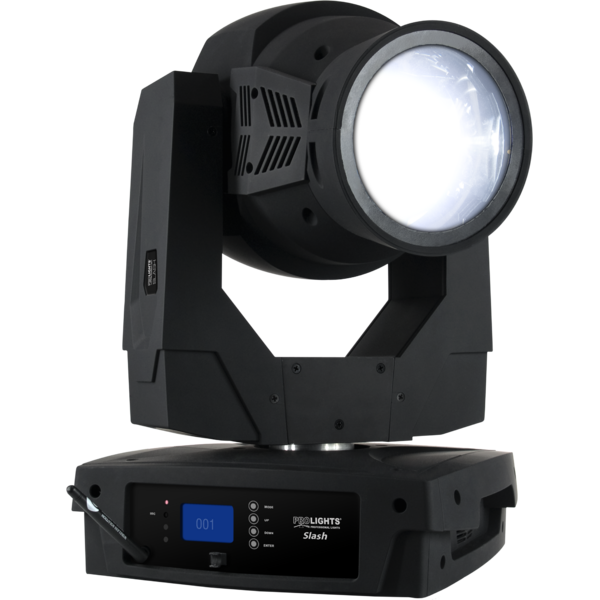

SLASH

ORDER CODE: SLASH

Main features:

    SLASH is a 189W moving Beam light which allows an extreme brightness, achievable only with 8 times higher wattage fixtures. The new generation optic design combined with the high-efficiency 5R Platinum lamp source produce a laser-like 0° parallel beam, performing an incredible output of 130'000 lux at 10mt. The effect range offers a great creativity with 14 colours, 12 rotating gobos, 4° zoom lens, 8 facet rotating prism, focus, frost and shutter to reproduce spectacular mid-air effects. The compact sizes (H. 50cm) and its light-weight profile (12,5Kg) make SLASH a suitable fixture to be installed everywhere for Live, TV studio, theatre, showroom and conference event.

    Lamp
    • Philips MSD Platinum 5R 189W (cod. 800198 included)
    • Colour temperature: 8000 K
    • Luminous flux: 7.950 lm
    • Average life span: 2000 h

    Optics
    • High efficiency Fresnel special optics featuring 0° parallel beam
    • Laser-like parallel Beam
    • Frost filter to obtain soft-board
    • Zoom lens for passage between 0° and 4°
    • Focus: motorized focusing, from 2 m to infinity

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 8 flash per second

    Colour system
    • Colour wheel with 14 dichroic filters + open (linear-step-less selection)
    • 3200K + 5600K colour temperature filters
    • Bidirectional rainbow effect

    Effects
    • Gobos group composed by 12 interchangeable gobos
    • Gobos rotation in both CW and CCW direction
    • Gobo change with synchronized blackout
    • Easy access to gobo wheels for replacement
    • 8 facet prism effect, rotating, indexable, replaceable

    Electronics
    • LCD display for a simplified access to control menu, configuration and DMX addressing
    • 2 DMX available configurations: 12/14 channels for full flexibility and control
    • Integrated 2,4GHz WDMX receiver (Wireless solution)
    • Input and output signal through XLR 3p and 5p connectors
    • "ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Thermal sensor monitoring optimum lamp temperature
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion Angle: Pan = 540°  Tilt = 270°
    Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

    Power supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 315W at 230V/50Hz

    Weight and dimensions
    • Weight: 12,5 kg
    • Dimensions (WxHxD): 310x553x310 mm
