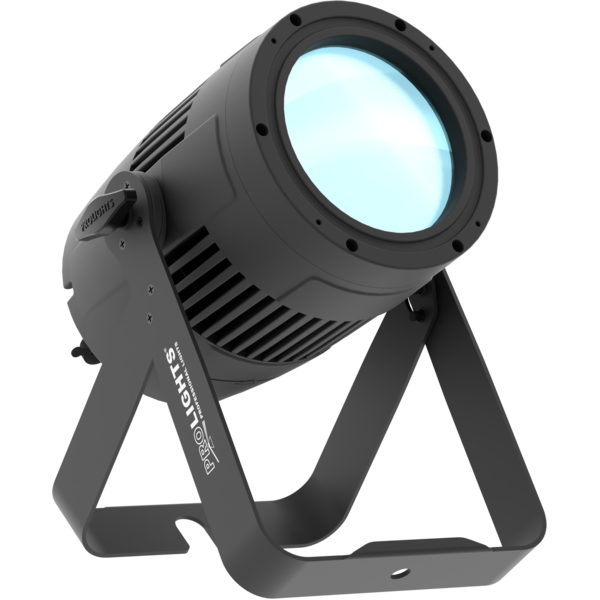

StudioCob PlusDY

150W IP65 rated Daylight White COB LED PAR

StudioCob PlusDY is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W 5.000 K COB LED source with HD dimming and high CRI
  • Flexible lens options of 18° - 38° - 60°
See variants

PHOTO GALLERY

StudioCob PlusDY
StudioCob PlusDY
StudioCob PlusDY
StudioCob PlusDY

Technical specifications

LIGHT SOURCE
  • Source: 150W daylight white LED
  • CCT: 5.000
  • Luminous flux: (18°) 11'233lm - (38°) 10'429
  • Lux: (18°) 8'454lx @3 m
  • Lux: (38°) 1'994lx @3 m
  • CRI: > 83
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38°, (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: flood (without lens) - 38° (inc)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 145W
  • Max power consumption (at 120V): 145W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 65 for outdoor installations
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 258x354x257mm / 10.16''x13.94''x10.12''
  • Weight: 4,95kg / 10.91lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
STUDIOCOBPLUSDYBK
STUDIOCOBPLUSDYBK (END OF LIFE)
Black
STUDIOCOBPLUSDYWH
STUDIOCOBPLUSDYWH
White

Accessories & Related Products

STUDIOCOBPLUSL38
STUDIOCOBPLUSL38
(included)
Optics for STUDIOCOBLUS projectors series, 38°
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
STUDIOCOBPLUSL60
STUDIOCOBPLUSL60
(optional)
Optics for STUDIOCOBLUS projectors series, 60°
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
FCLCOBPLUS
(optional)
Flight case for 8 STUDIOCOBPLUS
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualStudiocobplusdy_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
STUDIOCOBPLUSDY Firmware rev. 2.5
manufacturer fixture library (Link) Link
prolights_studiocobplusdy.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobplusdy_1ch.hedDownload
prolights_studiocobplusdy_2ch.hedDownload
prolights_studiocobplusdy_5ch.hedDownload
manufacturer fixture library (Link) Link
STUDIOCOBPLUSDY Firmware rev. 2.3
manufacturer fixture library (Link) Link
prolights_studiocobplusdy.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobplusdy_1ch.hedDownload
prolights_studiocobplusdy_2ch.hedDownload
prolights_studiocobplusdy_5ch.hedDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPStudiocobplusdy_3D.skp2MB
2DStudiocobplusdy_CAD_2D.dwg5MB
3DSTUDIOCOBPLUSDY_3D.zip1MB
Technical drawingStudiocobplusdy_TECHNICAL_DRAWING.pdf226KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.5 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
