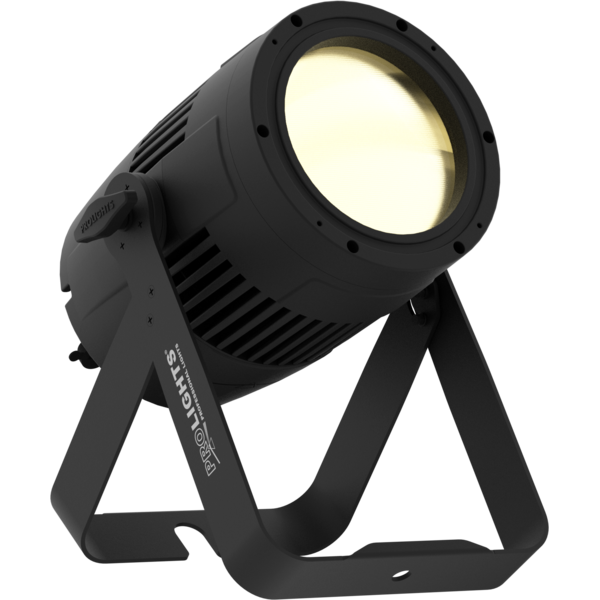

StudioCob PlusNW

ORDER CODE: STUDIOCOBPLUSNW

150W IP65 rated Tungsten White COB LED PAR

StudioCob PlusNW is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W 4.000K Warm White COB LED source with HD dimming and high CRI
  • Flexible lens options of 18° - 38° - 60°

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 150W Neutral White LED
  • CCT: 4.000
  • Luminous flux: (18°) 9'910
  • Lux: (18°) 7'000lx @3 m
  • CRI: > 80
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: flood (without lens) - 38° (inc)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black, white finishing available
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 154W
  • Output (at 230V): 25 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: forced-air with low-noise fan
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 4,95kg / 10.91lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobplusnw_LETTER_DATASHEET_(EN).pdf(18/01/2023)162KB
Letter datasheetStudiocobplusnw_A4_DATASHEET_(EN).pdf(18/01/2023)162KB

User manual

File name File size Download

DMX chart & personalities

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPStudiocobplusnw_3D.skp(23/03/2020)2MB
3D RFAStudiocobplusnw_3D.rfa(23/04/2021)1MB
3DStudiocobplusnw_CAD_3D.dwg(26/08/2021)537KB
2DStudiocobplusnw_CAD_2D.dwg(30/09/2021)5MB
2D cad symbolsStudiocobplusnw_CAD_2DSYMBOLS.dwg(30/09/2021)63KB
Technical drawingStudiocobplusnw_TECHNICAL_DRAWING.pdf(30/09/2021)226KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.4 STABLE 19/01/2022 Improvements:
  • Changed KEY LOCK on OFF as default.
