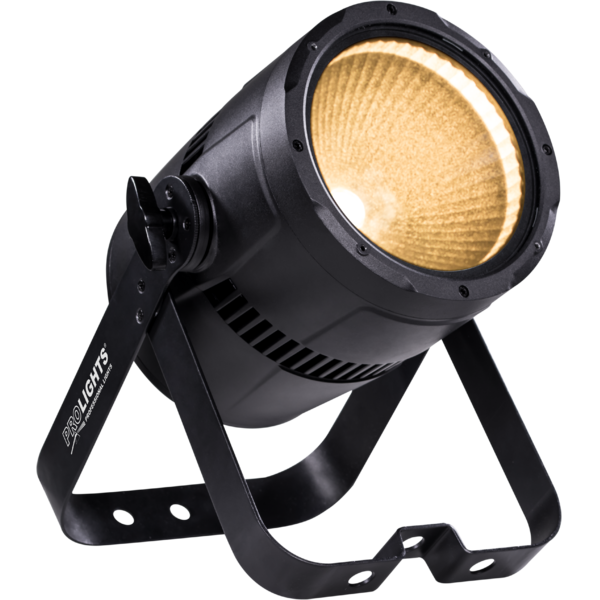

StudioCob WW

100 W Tungsten White COB PAR with parabolic reflector

STUDIOCOBWW is a powerful and incredibly versatile LED par. Fusing the old and the new, it pairs a 3.200 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.

Main features:

  • 100 W 3.200 K COB LED source with HD dimming and a high CRI.
  • Flexible lens options of 15° - 30° - 60°.
  • Functional barndoors for beam control.
See variants

PHOTO GALLERY

StudioCob WW
StudioCob WW
StudioCob WW
StudioCob WW
StudioCob WW

Technical specifications

LIGHT SOURCE
  • Source: 100W White COB LED
  • CCT: 3.200
  • Luminous flux: 3'771
  • Lux: (60°) 469,3lx @3 m
  • Lux: (30°) 926,5lx @3 m
  • CRI: > 97
  • Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 113W
  • Max power consumption (at 120V): 116W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Housing
STUDIOCOBWWBK
STUDIOCOBWWBK (END OF LIFE)
Black
STUDIOCOBWWCR
STUDIOCOBWWCR (DISCONTINUED)
Chrome

Accessories & Related Products

STUDIOCOBL30
STUDIOCOBL30
(Included)
Optics for STUDIOCOB projectors series, 30°
STUDIOCOBL15
STUDIOCOBL15
(Optional)
Optics for STUDIOCOB projectors series, 15°
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLPAR4190
FCLPAR4190
(Optional)
Flight case for 8 STUDIOCOB, VERSAPAR
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
