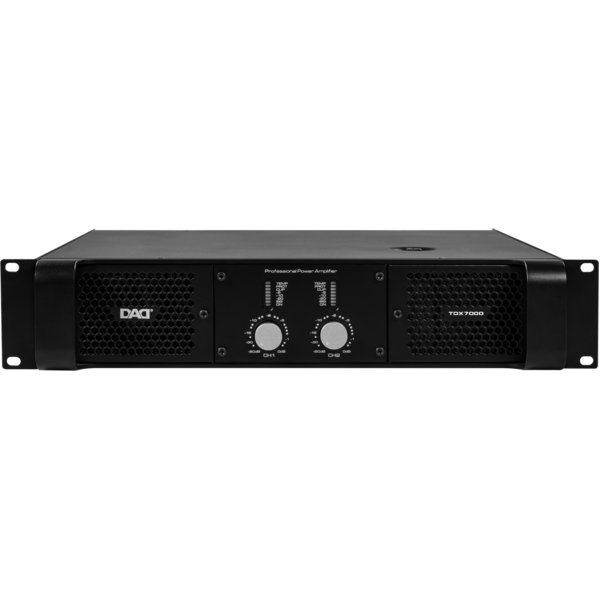

TDX7000
DAD
discontinued

TDX7000

ORDER CODE: TDX7000

The TDX amplifier series employs amplification technology in Class I and power stage with a toroidal transformer. The operation in Class I is based on a continuous and automatic adjustment of the value of the supply voltage of the final stage. This optimizes the efficiency up to 85%, reducing the weight with the same power and heat dissipation. The models of the TDX series are able to operate with loads from 2Ohm and are equipped with an extensive set of protection circuits to satisfy the higher reliability parameters with fixed and mobile high-quality profile sonorizations.

Main features:

  • TDX7000 features an output of single-channel power of 1450/2400/3300 W 8/4/2 Ohm
  • Bridge mode power: 7200 W 4 Ohm
  • Constant voltage: 100 V /2x1250 W
  • These features make TDX7000 the right choice for professional full-range speakers and Sub/MF/HF sections in highly demanding sound installations.
  • The possibility of use in 100V systems with 2x1250W output by selecting the 1V input sensitivity.

PHOTO GALLERY

Technical specifications

AMPLIFIER
  • Channels: 2
  • Circuit class: analog I class
OUTPUT
  • Single channel power: 1450/2400/3300 8/4/2 Ohm
  • Bridge mode power: 7200 4 Ohm
  • Constant voltage: 100V /2x1250 W
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (-1.5 dB)
  • THD+N: <0.05%
  • Damping factor: >300
  • Input impedance: 10kΩ
  • Signal/Noise rate: >100dB
POWER SUPPLY STAGE
  • Type: Trasformer
  • Operating voltage/frequency: 220 V ±10%, 50Hz
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume
FUNCTIONS
  • Input mode: stereo, parallel, bridge / limiter
  • Input sensitivity/gain: 1Vrms/32dB/38dB
INDICATORS
  • Indicators: 2 x LED bar - signal level, and over temperature protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: 2 x 4 pole, binding post
  • Power connection: terminal with wire
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 483x89x451mm / 19.02''x3.5''x17.76''
  • Rack unit: 2
  • Weight: 24.50kg / 54.01lbs
