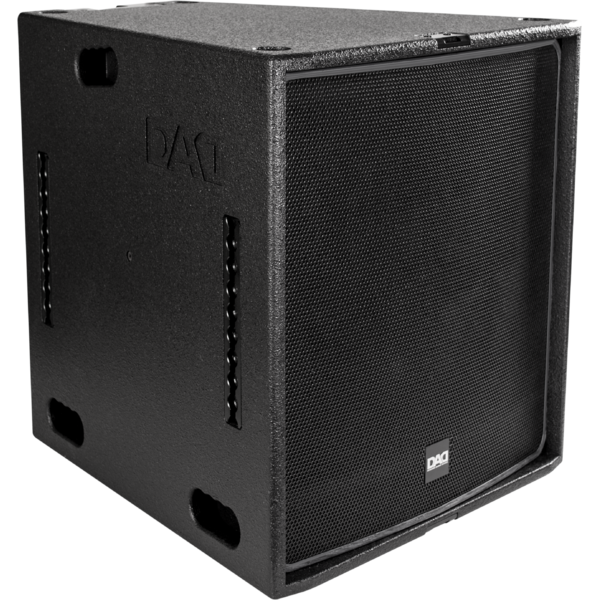

TOURING112H
DAD
discontinued

TOURING112H

ORDER CODE: TOURING112H

High-efficiency passive loudspeakers, horn loaded configuration, bi-amplifiable, 2 way 500 W AES,138dB SPL

Main features:

  • Low frequency: 12'' neodymium woofer/3''v.c.
  • High frequency: 1.4'' neodymium driver/3''v.c.
  • Frequency response: 80-18000 Hz (±3dB)
  • Excellent clarity in the reproduction of voice and music for live and recorded performances
  • For sound installations in indoor/outdoor environments requiring dynamics and high sound pressure over long distances
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: coaxial horn load bi-amp
COMPONENTS
  • Low frequency: 12'' neodymium woofer / 3'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • AES/program power: 510/1020W
  • SPL max: 138dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 105dB
  • Impedance: 8/16 Ohm
  • SPL cont/peak: 132/138dB @1m (free field)
  • Frequency response: 80-18000Hz (±3dB)
  • Coverage angle HxV: 75x40°
  • Protection: H.F. signal compression
  • Suggest HPF range: Active: LF 100/150Hz - HF 1000HzHz
  • Recommended amplifier up to: LF/HF:1000/250W 8/16Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 26° trapezoidal taper
  • Handles: 6 on side
PHYSICAL
  • Dimensions (WxHxD): 560x590x600mm / 22.05''x23.23''x23.62''
  • Weight: 35kg / 77.16lbs
