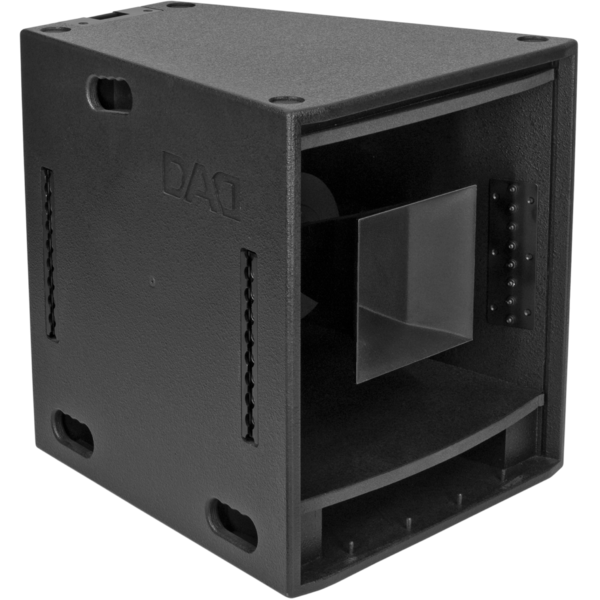

TOURING12H

ORDER CODE: TOURING12H

Main features:

---

High-efficiency passive loudspeaker, horn-loaded configuration, bi-amplifiable, 2-way 500W AES, 138dB SPL
Components:

• 12’’ Nd mid-woofer with 3’’ voice coil
• HF compression driver with 2’’ throat, titanium diaphragm, 3’’ voice coil
• 60°x40° (HxV) constant-directivity waveguide
• Impedance: 8Ohm
• Recommended amplifiers: LF up to 800W RMS/8Ohm, HF up to 200W RMS/8Ohm
• Sensitivity: 106dB @1W/1m
• Frequency response: 80-18000Hz (±3dB)
• External crossover frequency: LF 100/150Hz, HF 1400Hz
• HF driver protection
Connections:

• Neutrik NL-4 Speakon in/out
Cabinet construction:

• Trapezoidal profile with 26° angle
• 18mm multilayer birch plywood
• Fast-locking ''fly-track'' suspension system over 8 anchoring points
• Mount-pole adaptor for 35mm stands
Applications:

• Excellent clarity in reproduction of voice and music for live and recorded performances
• For sound installations in indoor/outdoor environments requiring dynamics and high sound pressure over long distances
• Mid-high section of multi-amplified systems combined with DAD Touring218H subwoofers
