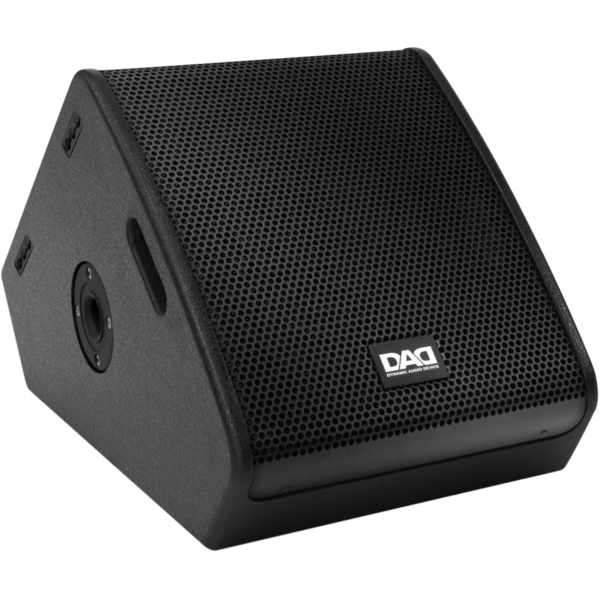

TOURING12MA
DAD
discontinued

TOURING12MA

ORDER CODE: TOURING12MA

Active stage-monitor, coaxial design, D-class amplifier, 2-way 700 W,127db SPL

Main features:

  • Low frequency: 12'' neodymium woofer / 3''v.c.
  • High frequency: 1.4'' neodymium driver / 3''v.c.
  • Frequency response: 75-18000 Hz (±3dB)
  • Excellent clarity in the monitoring of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
  • DSP with 4 presets (flat eq-cut 80 Hz-cut 60 Hz-punch eq) for selection of optimal frequency response
See variants

PHOTO GALLERY

TOURING12MA
TOURING12MA
TOURING12MA

Technical specifications

LOUDSPEAKER
  • System type: active stage monitor, coaxial design
COMPONENTS
  • Low frequency: 12'' neodymium woofer / 3'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • Built-in amp: 700W
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 121/127dB @1m (free field)
  • Frequency response: 75-18000Hz (±3dB)
  • Coverage angle HxV: 60x40°
  • Cross over frequency: 1400Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: flat eq-cut 80Hz-cut 60Hz-punch eq
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: VDE IN
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 50° monitor applications
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 430x410x558mm / 16.93''x16.14''x21.97''
  • Weight: 18kg / 39.68lbs
