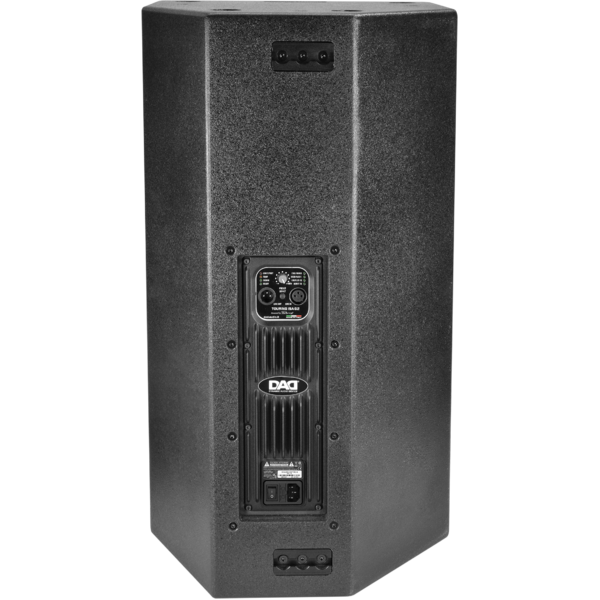

TOURING15AG2
DAD
end of life

TOURING15AG2

ORDER CODE: TOURING15AG2

Active loudspeaker, D-class amplifier, 2-way 700 W, 129dB SPL

Main features:

  • Low frequency: 15'' neodymium woofer/3''v.c.
  • High frequency: 2'' driver/3''v.c.
  • Frequency response: 45-18000 Hz (±3dB)
  • Excellent clarity in the reproduction of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure, designed for stage-monitor application
  • DSP with 4 presets (full range-HPF-coupling-monitor) for selection of optimal frequency response

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 15'' neodymium woofer / 3'' v.c.
  • High frequency: 2'' driver/3''v.c.
FEATURES
  • Built-in amp: 700W
  • SPL max: 129dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 123/129dB @1m (free field)
  • Frequency response: 45-18000Hz (±3dB)
  • Coverage angle HxV: 90x60°
  • Cross over frequency: 900Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: full range-HPF-coupling-monitor
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: VDE IN
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 45-30° monitor applications
  • Handles: 4 on side
PHYSICAL
  • Dimensions (WxHxD): 430x755x405mm / 16.93''x29.72''x15.94''
  • Weight: 34kg / 74.96lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download
    Letter datasheetTouring15ag2_A4_DATASHEET_(EN).pdf415KB

    User manual

    File name File size Download
    User manualTouring15ag2_USER_MANUAL.pdf3MB
