TOURING15MP
DAD

TOURING15MP

ORDER CODE: TOURING15MP

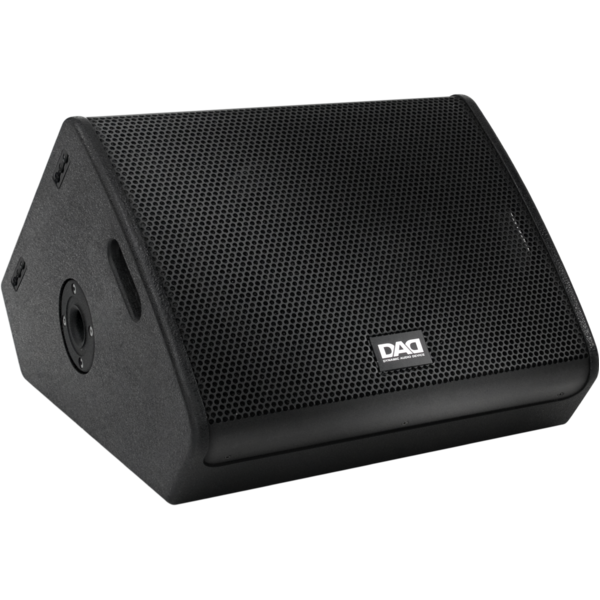

Passive stage-monitor, coaxial design, 2-way 400 W AES,130db SPL

Main features:

  • Low frequency: 15'' neodymium woofer/3''v.c.
  • High frequency: 1.4'' neodymium driver/3''v.c.
  • Frequency response: 65-18000 Hz (±3dB)
  • Excellent clarity in the monitoring of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
See variants

PHOTO GALLERY

TOURING15MP
TOURING15MP
TOURING15MP

Technical specifications

LOUDSPEAKER
  • System type: passive stage monitor, coaxial design
COMPONENTS
  • Low frequency: 15'' neodymium woofer / 3'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • AES/program power: 400/800W
  • SPL max: 130dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 99dB
  • Impedance: 8 Ohm
  • SPL cont/peak: 124/130dB @1m (free field)
  • Frequency response: 65-18000Hz (±3dB)
  • Coverage angle HxV: 60x40°
  • Cross over frequency: 1200Hz
  • Protection: H.F. signal compression
  • Recommended amplifier up to: 800W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 50° monitor applications
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 582x410x558mm / 22.91''x16.14''x21.97''
  • Weight: 20kg / 44.09lbs

Versions

Accessories & Related Products

BAGTOURING15M
BAGTOURING15M
(facoltativo)
Fabric protection for DAD TOURING15MA/TOURING15MP

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetTouring15mp_A4_DATASHEET_(EN).pdf336KB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareTouring Power preset DPS amp6KB
SoftwareTouring preset for DXZ26340KB
