TOURING15P
DAD
discontinued

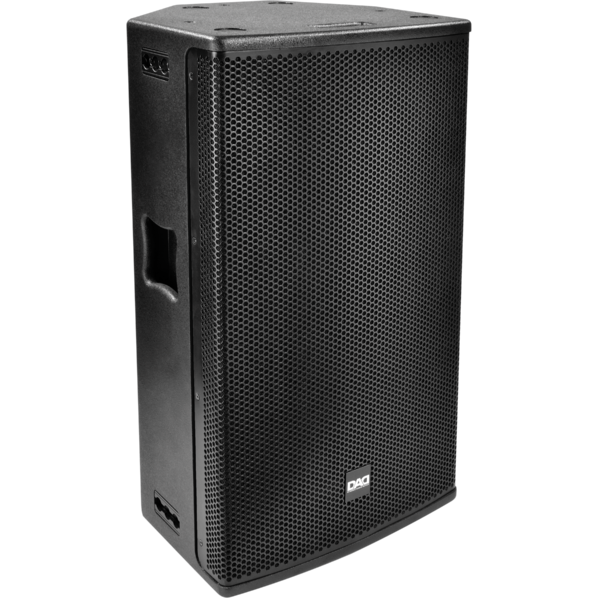

TOURING15P

ORDER CODE: TOURING15P

2-way passive loudspeakers, 500 W AES,131db SPL

Main features:

  • Low frequency: 15'' neodymium woofer/3''v.c.
  • High frequency: 2'' driver/3''v.c.
  • Frequency response: 50-18000 Hz (±3dB)
  • Excellent clarity in the reproduction of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure, designed for stage-monitor application

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 15'' neodymium woofer / 3'' v.c.
  • High frequency: 2'' driver/3''v.c.
FEATURES
  • AES/program power: 500/1000W
  • SPL max: 131dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 99dB
  • Impedance: 8 Ohm
  • SPL cont/peak: 125/131dB @1m (free field)
  • Frequency response: 50-18000Hz (±3dB)
  • Coverage angle HxV: 90x60°
  • Cross over frequency: 1100Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 80/120Hz
  • Recommended amplifier up to: 1000W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 50-30° monitor applications
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 430x755x405mm / 16.93''x29.72''x15.94''
  • Weight: 32.5kg / 71.65lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download
    Letter datasheetTouring15p_A4_DATASHEET_(EN).pdf411KB

    User manual

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DTouring15p_CAD_2D.dwg94KB
    Technical drawingTouring15p_TECHNICAL_DRAWING.pdf91KB

    Tech docs

    File name File size Download

    Software

    File name File size Download
    SoftwareTouring Power preset DPS amp6KB
    SoftwareTouring preset for DXZ26340KB

    Firmware
