TOURING15SA
DAD
discontinued

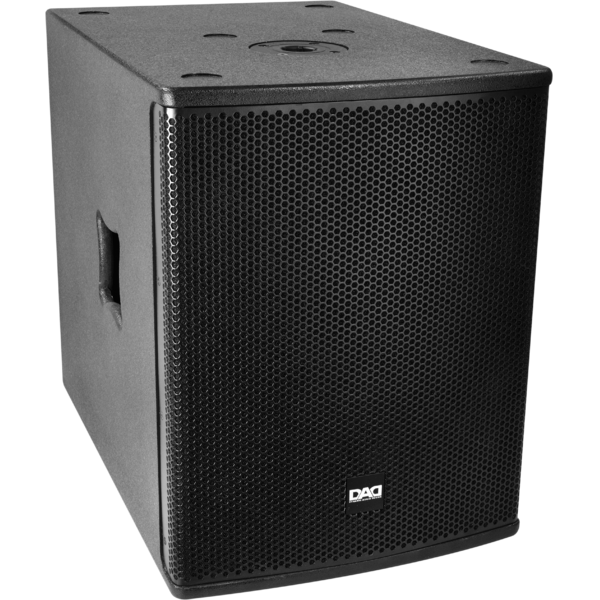

TOURING15SA

ORDER CODE: TOURING15SA

Active subwoofer, D-class amplifier, 700 W,131db SPL

Main features:

  • Low frequency: 15'' woofer/4''v.c.
  • Frequency response: 40-150 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
  • DSP with 4 presets (LPF 150 Hz-120 Hz-100 Hz-80 Hz) for selection of optimal frequency response
See variants

PHOTO GALLERY

TOURING15SA
TOURING15SA
TOURING15SA
TOURING15SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 15'' woofer/4''v.c.
FEATURES
  • Built-in amp: 700W
  • SPL max: 131dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 125/131dB @1m (free field)
  • Frequency response: 40-150Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: LPF 150Hz-120Hz-100-Hz-80Hz
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: VDE IN
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: 35 mm mounting pole
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 430x570x645mm / 16.93''x22.44''x25.39''
  • Weight: 31kg / 68.34lbs

Versions

Accessories & Related Products

BAGTOURING15S
BAGTOURING15S
(Optional)
Fabric protection for DAD TOURING15SA/TOURING15SP
