TOURING15SP
DAD
discontinued

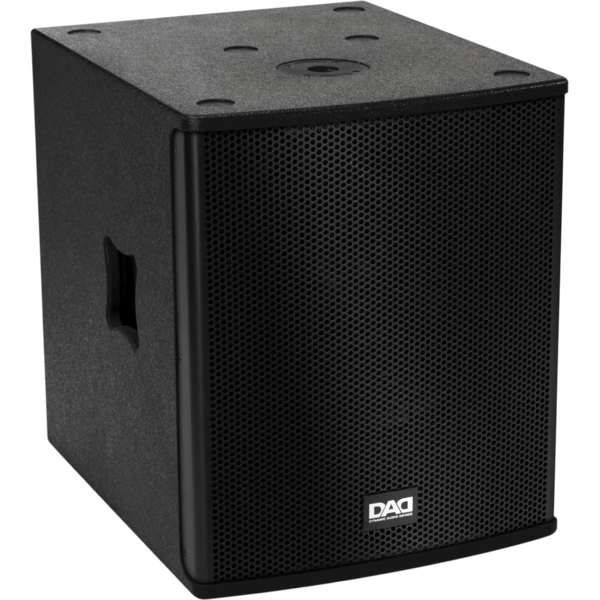

TOURING15SP

ORDER CODE: TOURING15SP

Passive subwoofer, 700 W AES,132db SPL

Main features:

  • Low frequency: 15'' woofe r/ 4''v.c.
  • Frequency response: 45-200 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
See variants

PHOTO GALLERY

TOURING15SP
TOURING15SP
TOURING15SP

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 15'' woofer/4''v.c.
FEATURES
  • AES/program power: 700/1400W
  • SPL max: 132dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 97dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 126/132dB @1m (free field)
  • Frequency response: 45-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 80-150Hz
  • Recommended amplifier up to: 1400W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 430x570x645mm / 16.93''x22.44''x25.39''
  • Weight: 30kg / 66.14lbs

Versions

Accessories & Related Products

BAGTOURING15S
BAGTOURING15S
(Optional)
Fabric protection for DAD TOURING15SA/TOURING15SP
