TOURING18SA
DAD
discontinued

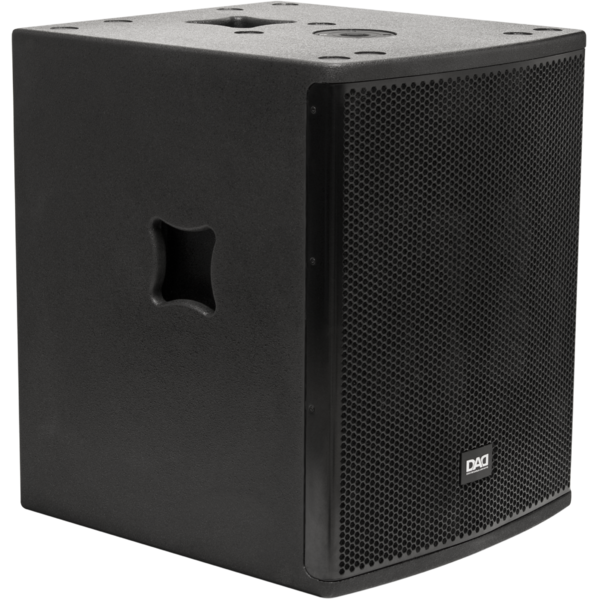

TOURING18SA

ORDER CODE: TOURING18SA

Active subwoofer, D-class amplifier, 1500 W, 134db SPL

Main features:

  • Low frequency: 18'' woofer/4''v.c.
  • Frequency response: 30-150 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
  • DSP with 4 presets (punch-extended low-coupling-infra) for selection of optimal frequency response

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 18'' woofer/4''v.c.
FEATURES
  • Built-in amp: 1500W
  • SPL max: 134dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 128/134dB @1m (free field)
  • Frequency response: 30-150Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: punch-extented low-coupling-infra
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 24mm / 0.94'' birchplywood
  • Sospension system: 35 mm mounting pole
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 561x710x620mm / 22.09''x27.95''x24.41''
  • Weight: 51kg / 112.44lbs
