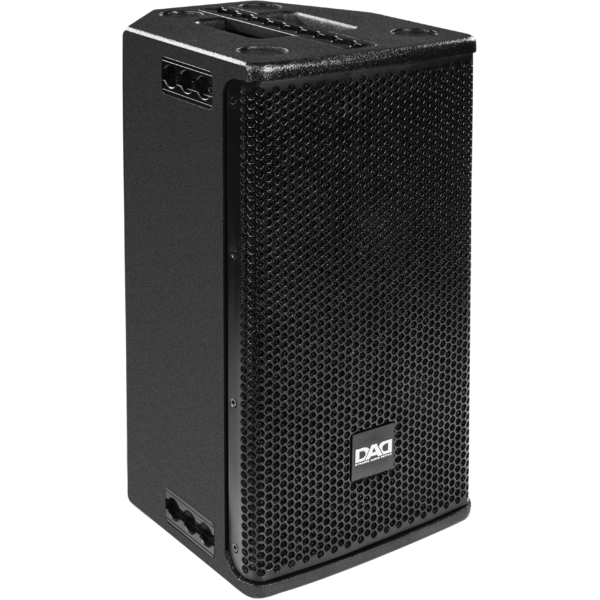

TOURING208A
DAD
discontinued

TOURING208A

ORDER CODE: TOURING208A

Active loudspeaker, D-class amplifier, 3-way 700 W, 126dB SPL

Main features:

  • Low frequency: 8'' neodymium woofer/2''v.c.
  • Mid frequency: 8'' midrange / 2'' v.c.
  • High frequency: 1'' coaxial driver/1.7''v.c.
  • Frequency response: 55-18000 Hz (±3dB)
  • Excellent clarity in the reproduction of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure, designed for stage-monitor application
  • DSP with 4 presets (full range-HPF-coupling-monitor) for selection of optimal frequency response
See variants

PHOTO GALLERY

TOURING208A
TOURING208A
TOURING208A
TOURING208A
TOURING208A

Technical specifications

LOUDSPEAKER
  • System type: active 3 way
COMPONENTS
  • Low frequency: 8'' neodymium woofer / 2'' v.c.
  • Mid frequency: 8'' midrange / 2'' v.c.
  • High frequency: 1'' coaxial driver/1.7''v.c.
FEATURES
  • Built-in amp: 700W
  • SPL max: 126dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 120/126dB @1m (free field)
  • Frequency response: 55-18000Hz (±3dB)
  • Coverage angle HxV: 100x100°
  • Cross over frequency: 200-2000Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: full range-HPF-coupling-monitor
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: VDE IN
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 45-25° monitor applications
  • Handles: 1 top
PHYSICAL
  • Dimensions (WxHxD): 244x490x270mm / 9.61''x19.29''x10.63''
  • Weight: 18kg / 39.68lbs
