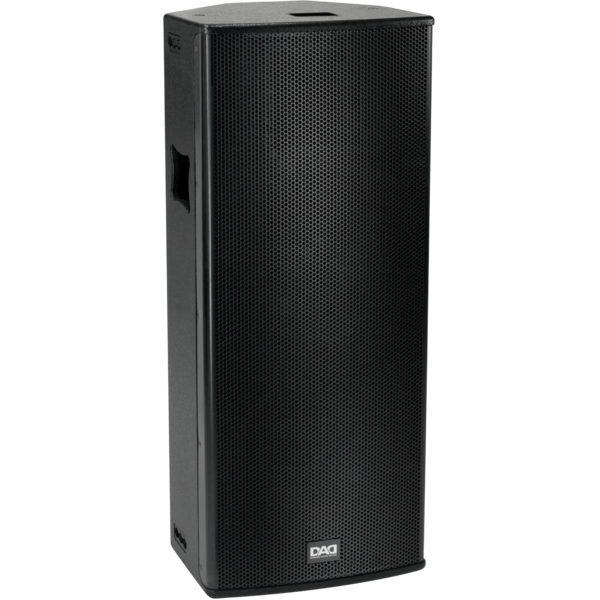

TOURING215A
DAD
discontinued

TOURING215A

ORDER CODE: TOURING215A

Active loudspeaker, D-class bi-amp, 2-way 1050 W+570 W, 137dB SPL

Main features:

  • Low frequency: 2x15'' neodymium woofer/3''v.c.
  • High frequency: 2'' driver/3''v.c.
  • Excellent clarity in the reproduction of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure
  • DSP presets for front-fill, near-field and mid-field monitoring, hi-mid section, array mounting

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 2x15'' neodymium woofer / 3'' v.c.
  • High frequency: 2'' driver/3''v.c.
FEATURES
  • Built-in amp LF/HF: 1050+570W
  • SPL max: 137dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 131/137dB @1m (free field)
  • Frequency response: 45-18000Hz (±3dB)
  • Coverage angle HxV: 90x60°
  • Cross over frequency: 1100Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: full range-HPF-coupling-monitor
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 45-30° double angle
  • Handles: 4 on side
PHYSICAL
  • Dimensions (WxHxD): 430x1145x405mm / 16.93''x45.08''x15.94''
  • Weight: 51.5kg / 113.54lbs
