TOURING218SA
DAD
discontinued

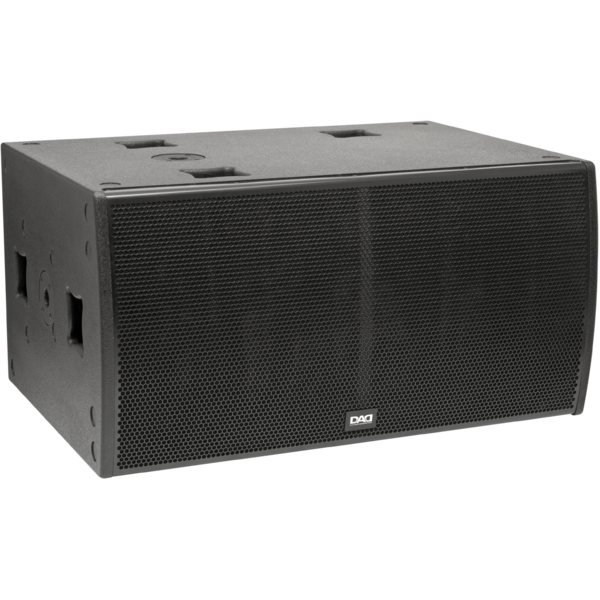

TOURING218SA

ORDER CODE: TOURING218SA

Active subwoofer, D-class amplifier, 3000 W,140db SPL

Main features:

  • Low frequency: 2x18'' woofer/4''v.c.
  • Frequency response: 30-150 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • DSP with 4 presets (punch-extended low-coupling-infra) for selection of optimal frequency response
See variants

PHOTO GALLERY

TOURING218SA
TOURING218SA
TOURING218SA
TOURING218SA

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 2x18'' woofer/4''v.c.
FEATURES
  • Built-in amp: 3000W
  • SPL max: 140dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 136/140dB @1m (free field)
  • Frequency response: 30-150Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: RMS limiter, fast limiter, temp.
  • User controls: punch-extented low-coupling-infra
  • Processor: DSP
  • Operating voltage/frequency: 220 V ±10%, 50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 24mm / 0.94'' birchplywood
  • Sospension system: 35 mm mounting pole
  • Handles: 10 on side
PHYSICAL
  • Dimensions (WxHxD): 1100x561x780mm / 43.31''x22.09''x30.71''
  • Weight: 93.5kg / 206.13lbs

Versions

Accessories & Related Products

BAGTOURING218S
BAGTOURING218S
(Optional)
Fabric protection for DAD TOURING218A/TOURING218P

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetTouring218sa_A4_DATASHEET_(EN).pdf437KB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
