TOURING218SP
DAD

TOURING218SP

ORDER CODE: TOURING218SP

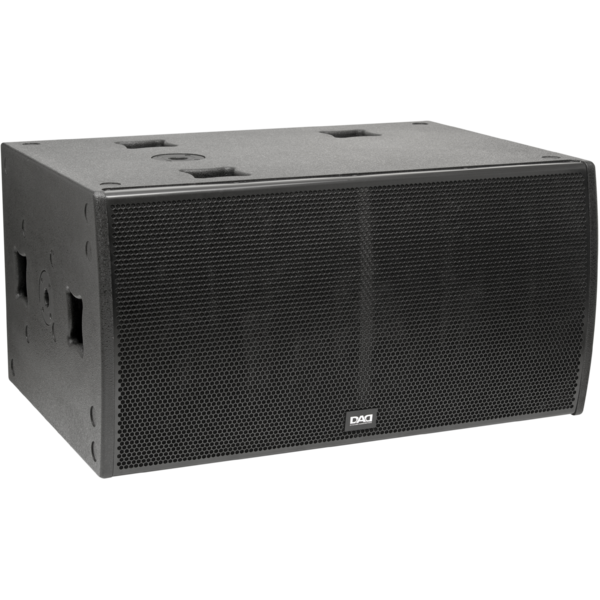

Passive subwoofer, 3000 W AES,140db SPL

Main features:

  • Low frequency: 2X18'' woofer/4''v.c.
  • Frequency response: 35-150 Hz (±3dB)
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 2X18'' woofer/4''v.c.
FEATURES
  • AES/program power: 3000/6000W
  • SPL max: 140dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 106dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 134/140dB @1m (free field)
  • Frequency response: 35-150Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 80-150Hz
  • Recommended amplifier up to: 6000W /4Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 22mm / 0.87'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Handles: 10 on side
PHYSICAL
  • Dimensions (WxHxD): 1100x561x780mm / 43.31''x22.09''x30.71''
  • Weight: 92kg / 202.83lbs
